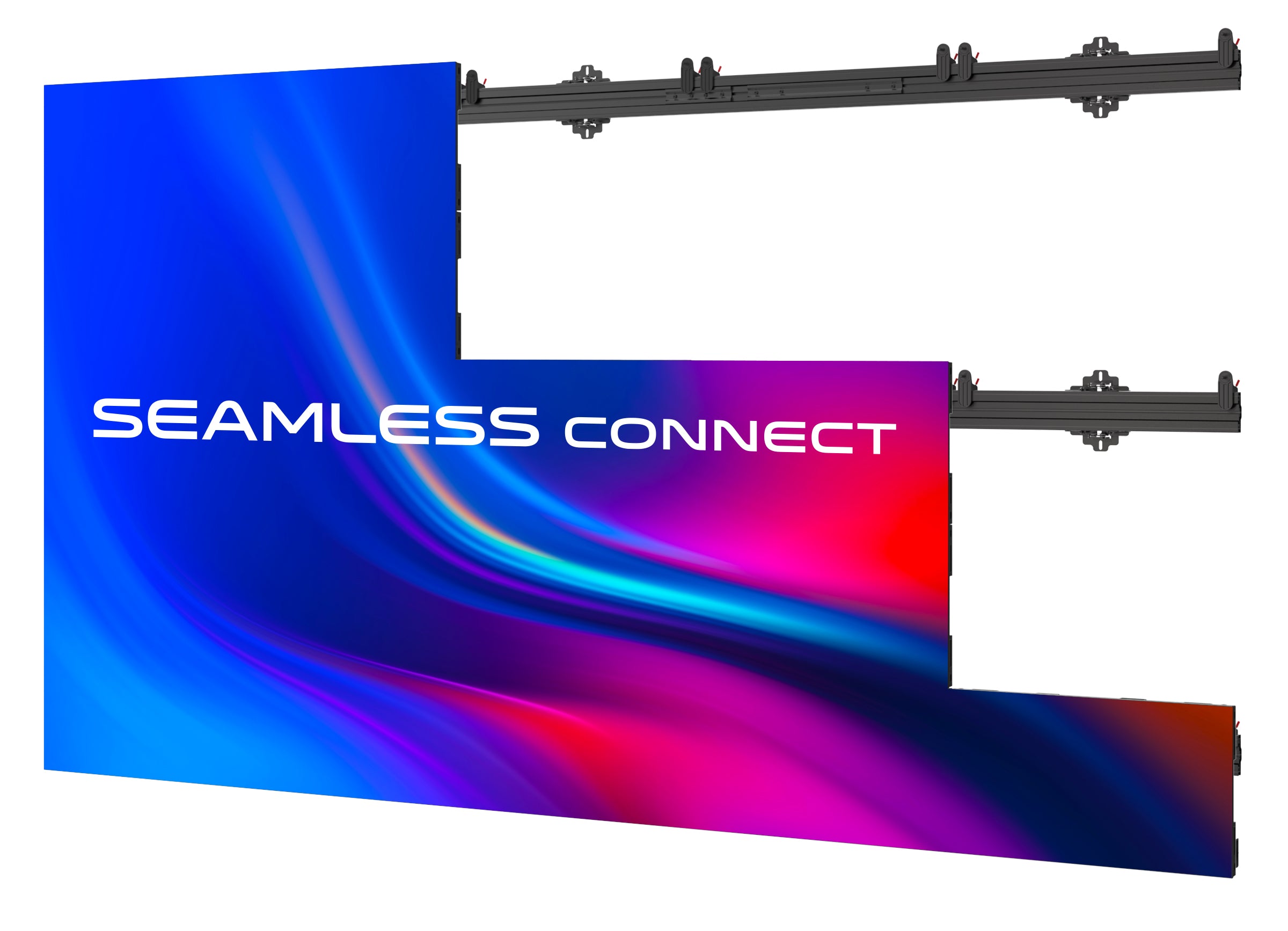

SEAMLESS Connect Universal dvLED Mounting System

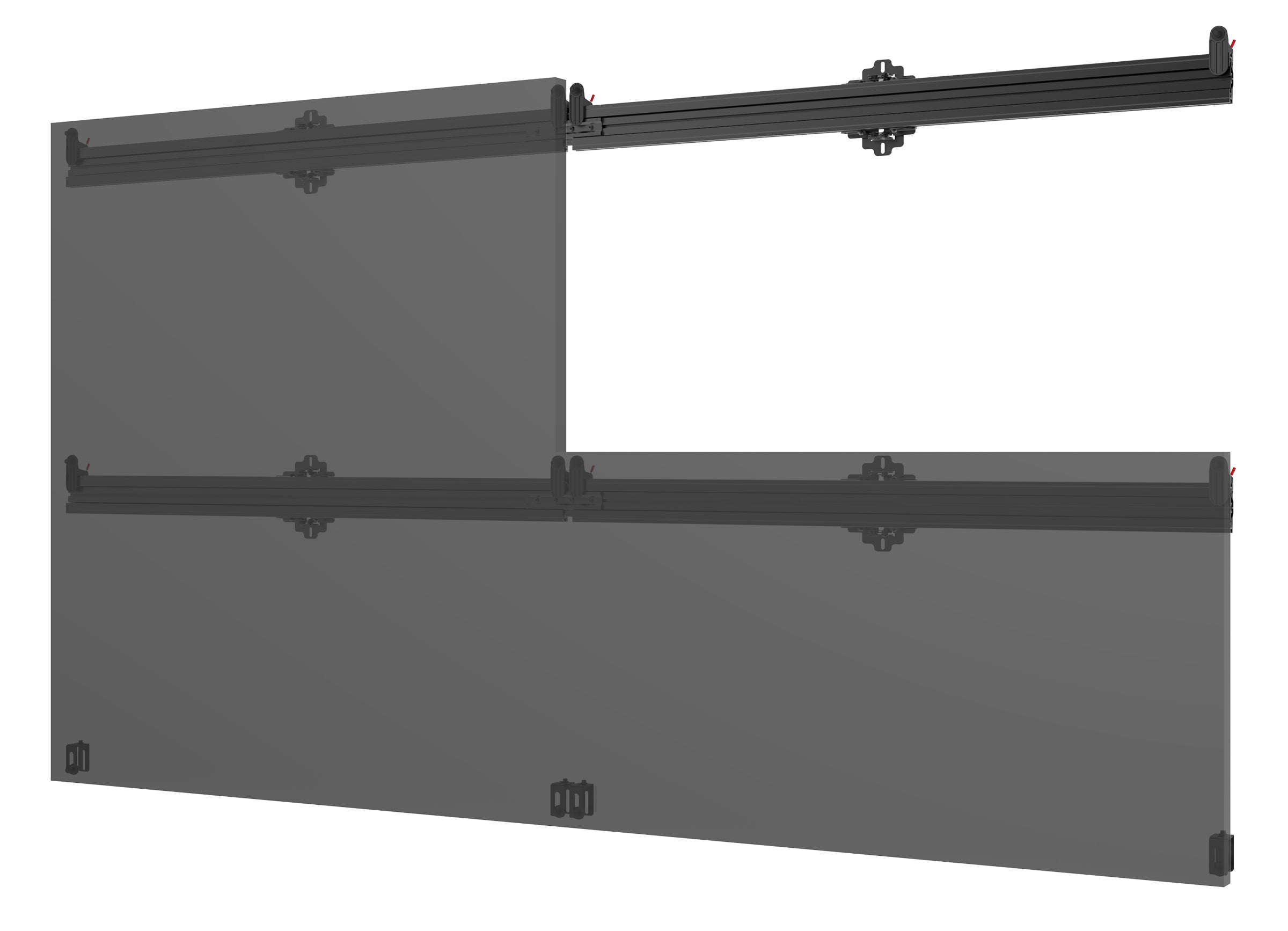

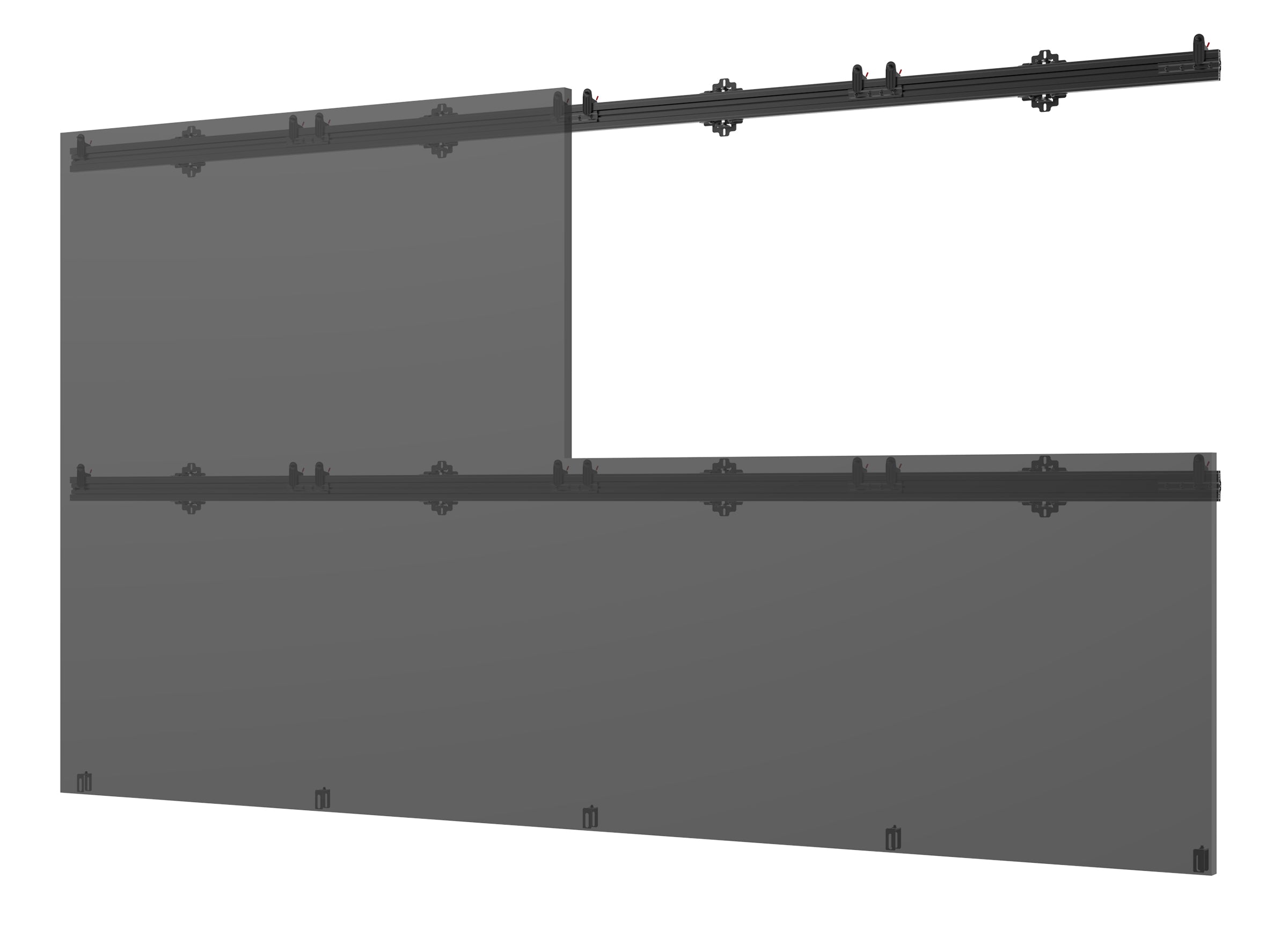

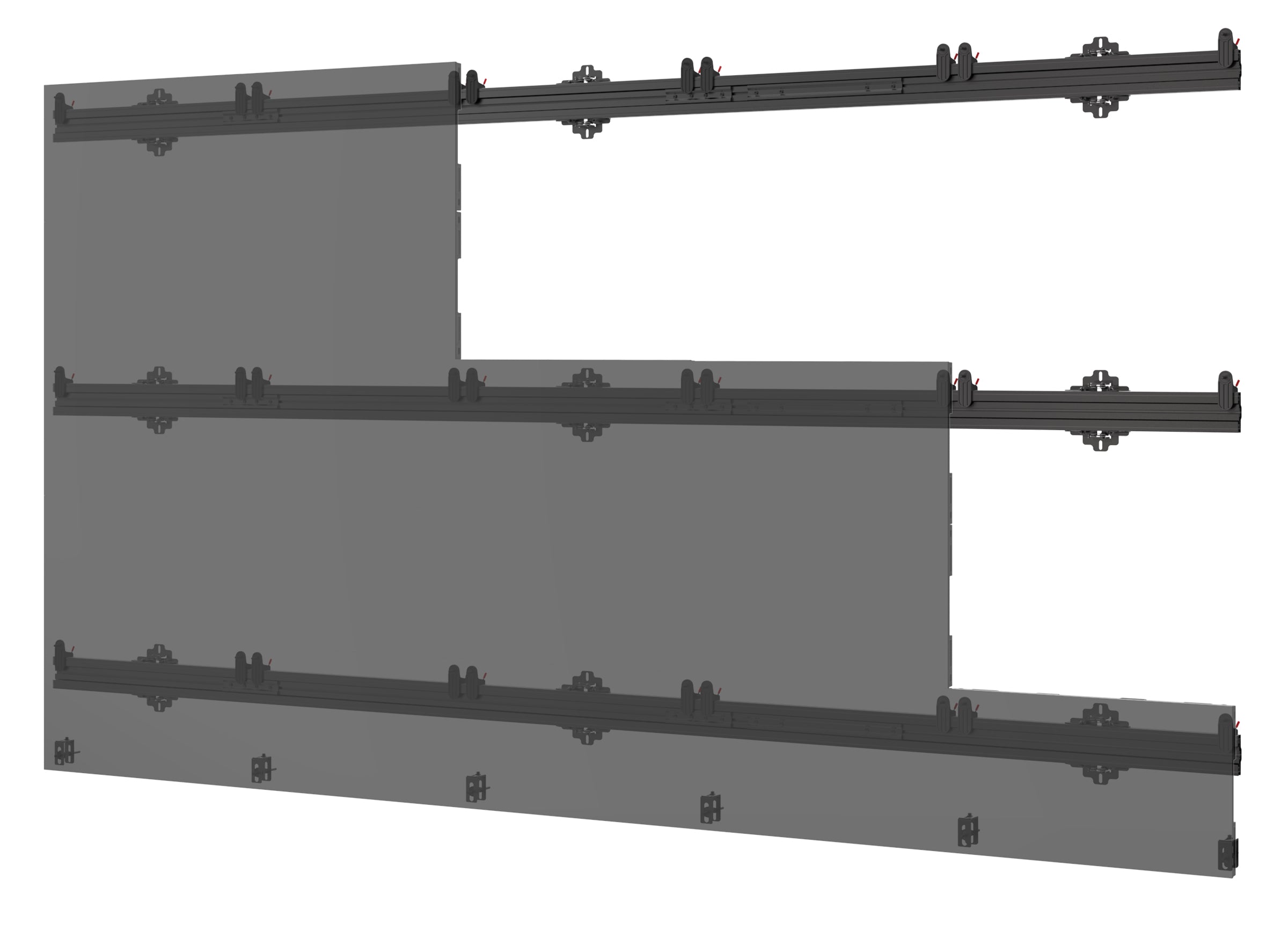

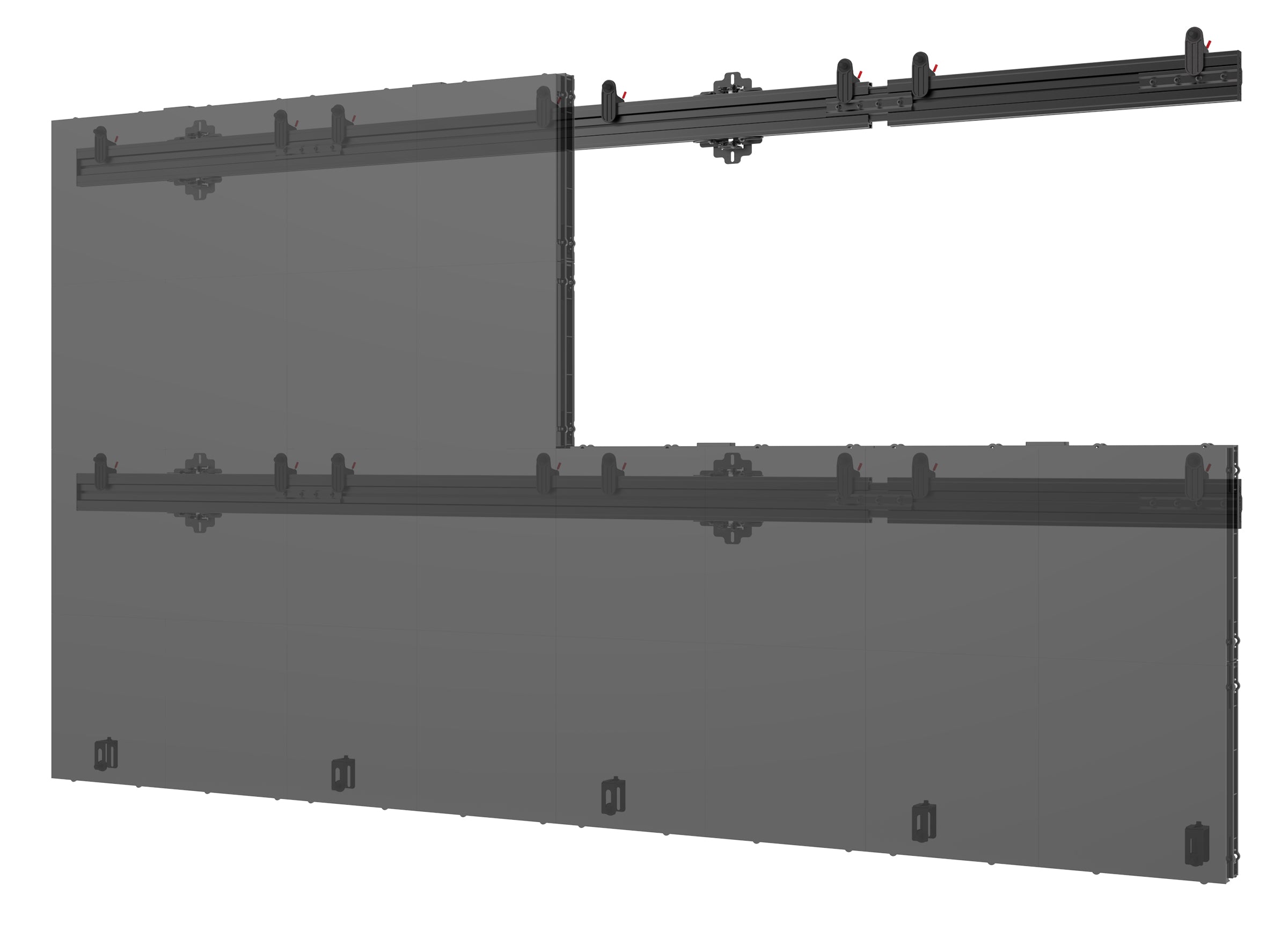

LEDUNVS-4X4The Peerless-AV® SEAMLESS Connect Universal dvLED Mounting System offers a sleek, flexible design for even greater installation accuracy and time savings. The LEDUNV provides an affordable solution with a patent-pending universal spacer that ensures compatibility with most latching dvLED displays. The ADA-compliant mount frame allows for X, Y, and Z axis adjustments to accommodate uneven walls and ensure a flat video wall. Its lightweight aluminum frame installs quickly, and the quick-connect clamps make securing the displays to the mount frame simple for installers. The compact packaging minimizes warehouse space requirements and typically allows for parcel shipping, reducing delivery costs. Designed for flexibility, this mounting system ensures a secure, precise, and professional display setup for any environment – From corporate lobbies, shopping centers, sports venues, concert halls, casinos, and more.
Please contact a Peerless-AV Sales Representative for the current list of compatible latching dvLED display models.
Understanding Our dvLED Mounting System Sizes
To help simplify your dvLED video wall planning, the mounting systems are available in three size ranges – Small, Medium, and Large – based on the width of your dvLED displays.
LEDUNVS Models: For dvLED displays up to 610mm wide
LEDUNVM Models: For dvLED displays up to 960mm wide
LEDUNVL Models: For dvLED displays up to 1220mm wide
Need help choosing the right fit? Contact our customer care team today!
- Universal design is compatible with most latching dvLED displays for versatile installation
- Engineered for versatility, accommodating both corner and flat-to-wall installations
- Scalable design enables unlimited sizes and configurations
- Adapts to uneven walls of any size for a precise fit with 1.6" (40mm) z-axis adjustment
- Quick-connect clamps are manufactured with durable cast aluminum construction that deliver superior strength and secure clamping force

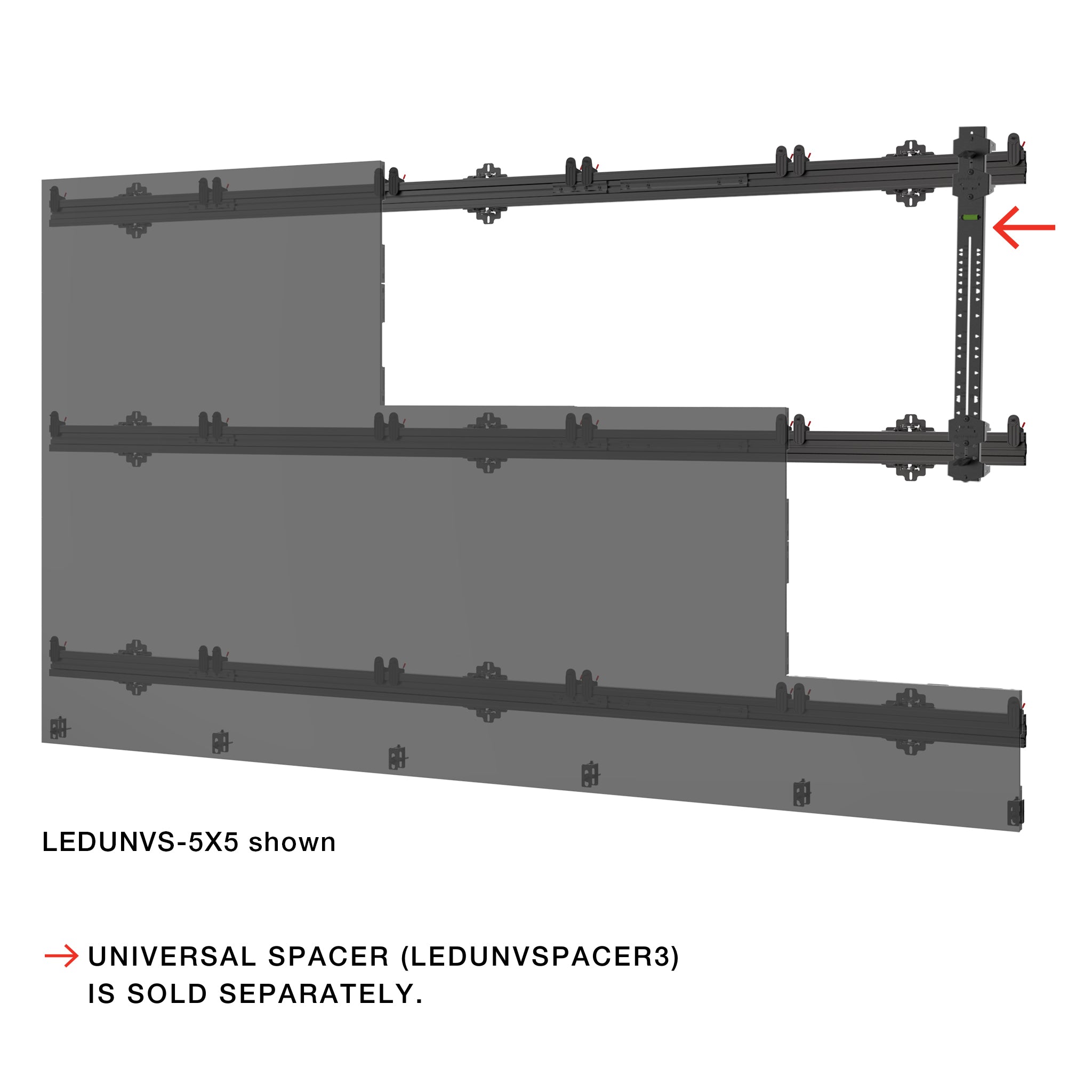

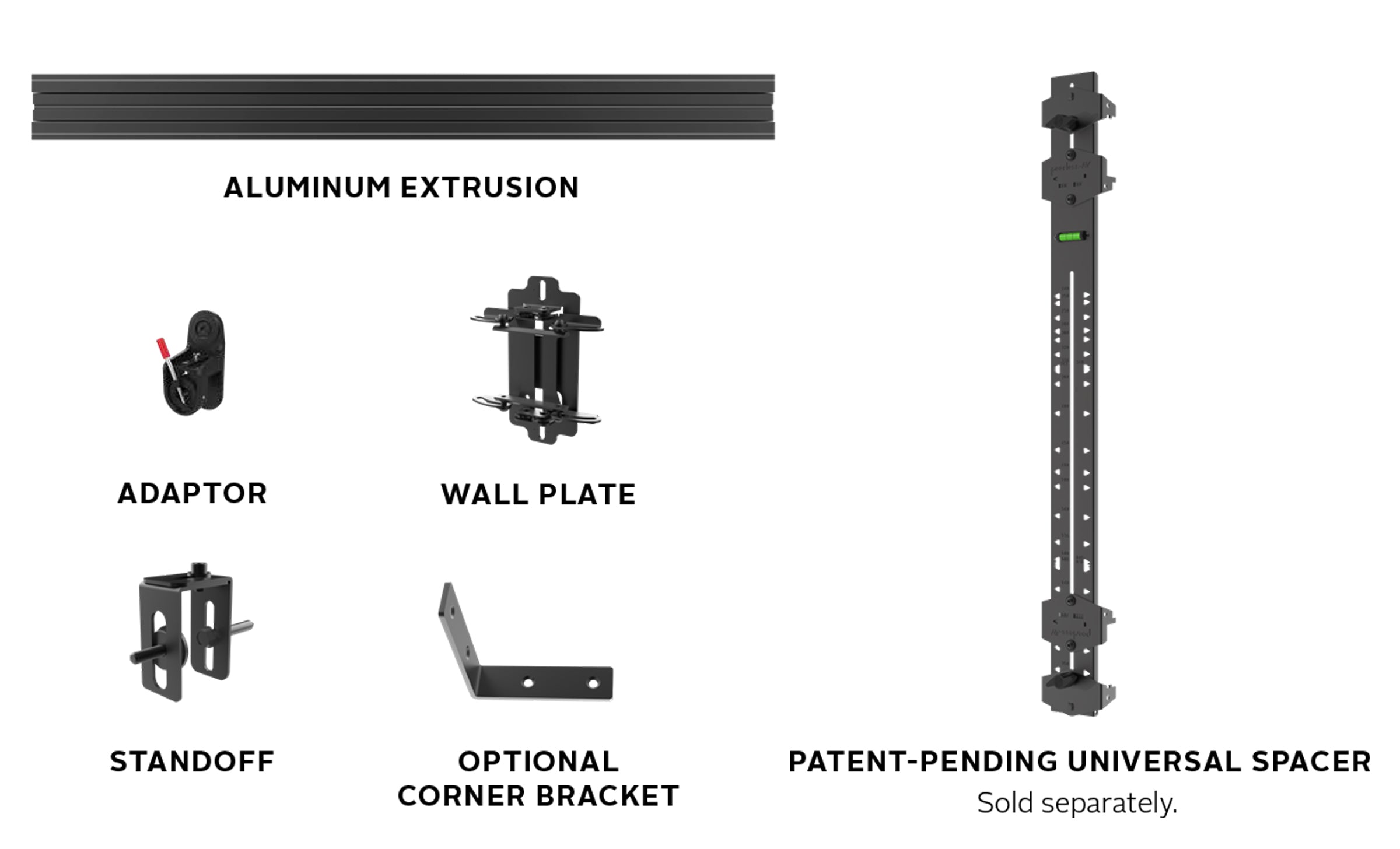

- Patent-pending universal spacer ensures accurate horizontal extrusion spacing for both landscape and portrait orientations, with built-in calipers for measuring uncommon cabinet sizes*
- High-strength components support alternate row and column mounting patterns to streamline installation and reduce labor costs
- Ultra-thin design maintains a minimal 1.6" (40mm) depth, ensuring ADA compliance for various dvLED displays
- Gear mechanism provides smooth arm movement and 1.6" (40mm) of depth adjustment without binding
- Included with LEDUNVS and LEDUNVL, extrusion expansion joint can eliminate on-site cutting, streamlining the installation process in the majority of installs
- Wall plate includes 0.5" (13mm) height adjustment to enable quick spacing corrections
- Additional 0.2" (6mm) clamp height micro-adjustment delivers perfect pixel positioning
- Optional trim kit accessory (LEDTK) offers compatibility with most displays
- Compact packaging minimizes environmental impact, shipping costs, and storage space
- When mounting to a wall is not an option, Peerless-AV® also offers a flexible range of SEAMLESS Connect Universal Substructures
- *Universal spacer (LEDUNVSPACER3) is sold separately.
