SP850-UNL

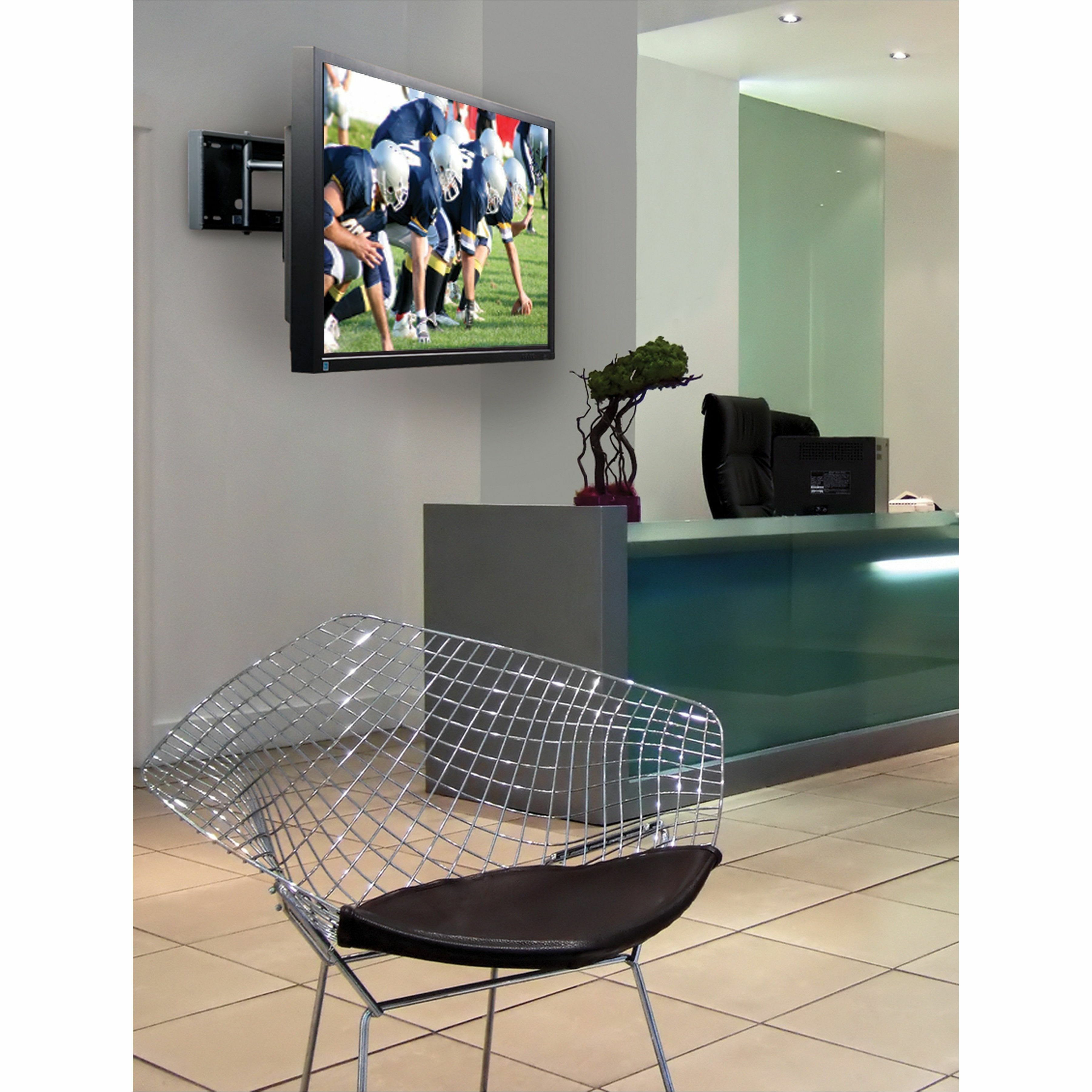

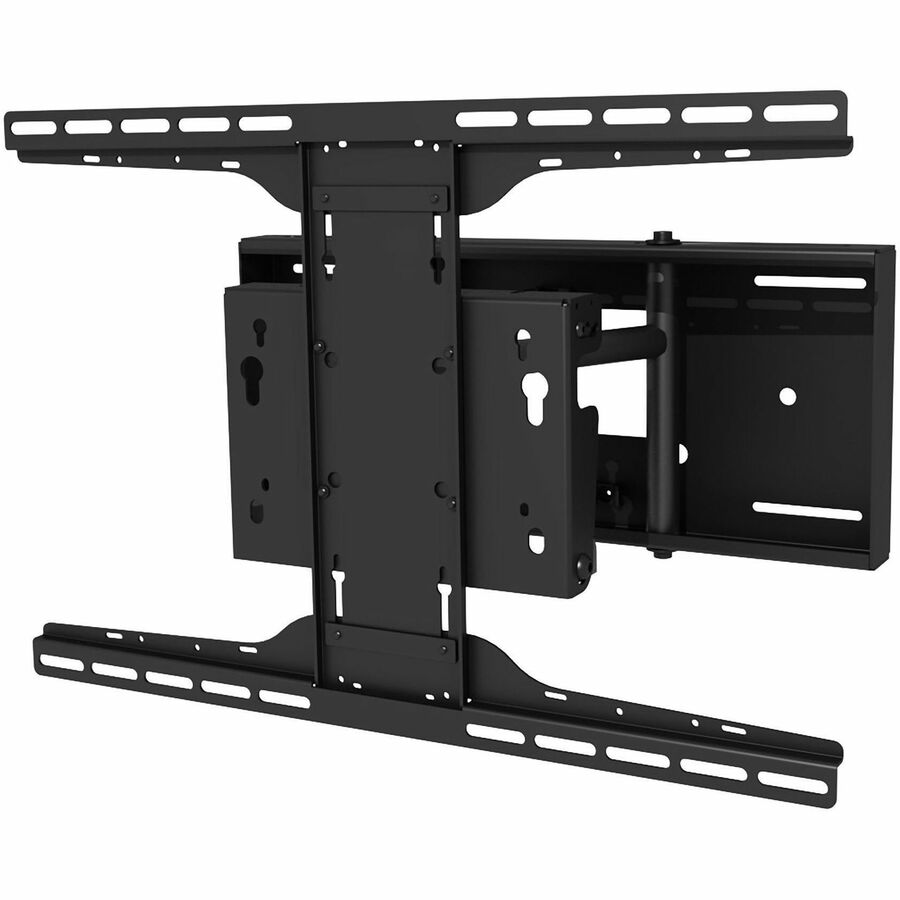

The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hides all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
49"
Maximum Screen Size Supported
80"
65"
Maximum Load Capacity
150 lb
150 lb
Mounting Pattern
600 x 400
400 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hides all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SP850-UNL |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | SP850-UNLP |
| Product Model | SP850-UNL |
| Product Name | Pull-out Pivot Wall Mount For 32" to 80" Displays |
| Marketing Information | The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hides all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 80" |
| Minimum Adjustable Depth | 2.73" |
| Maximum Adjustable Depth | 11.18" |
| Features |
|
| Mount Pattern | Universal |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Form Factor | Wall Mountable |
| Height | 16.78" |
| Width | 24.38" |
| Depth | 11.18" |
| Weight (Approximate) | 30.40 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Pivot |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| UL Listed | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Minimum Swivel Angle | -45° |
|---|
| Maximum Swivel Angle | 45° |
|---|
| Mount Function |
|
|---|
| Mount Surface |
|
|---|
| Durability |
|
|---|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
