Product Datasheet
SA746PU

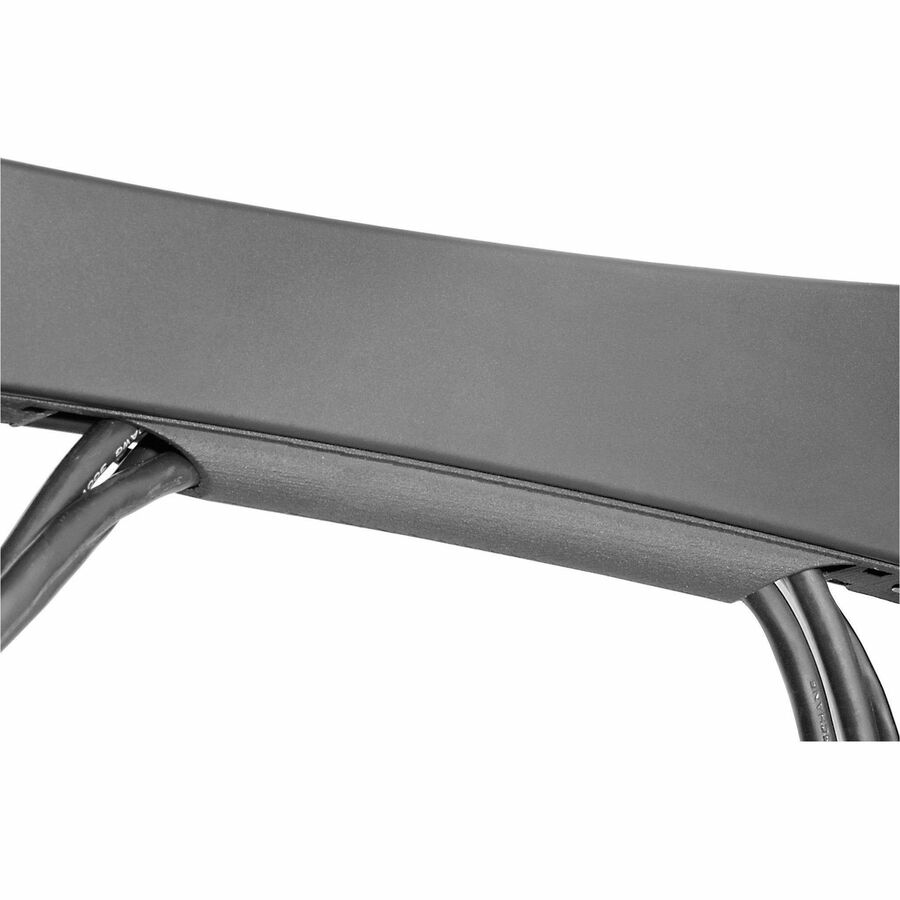

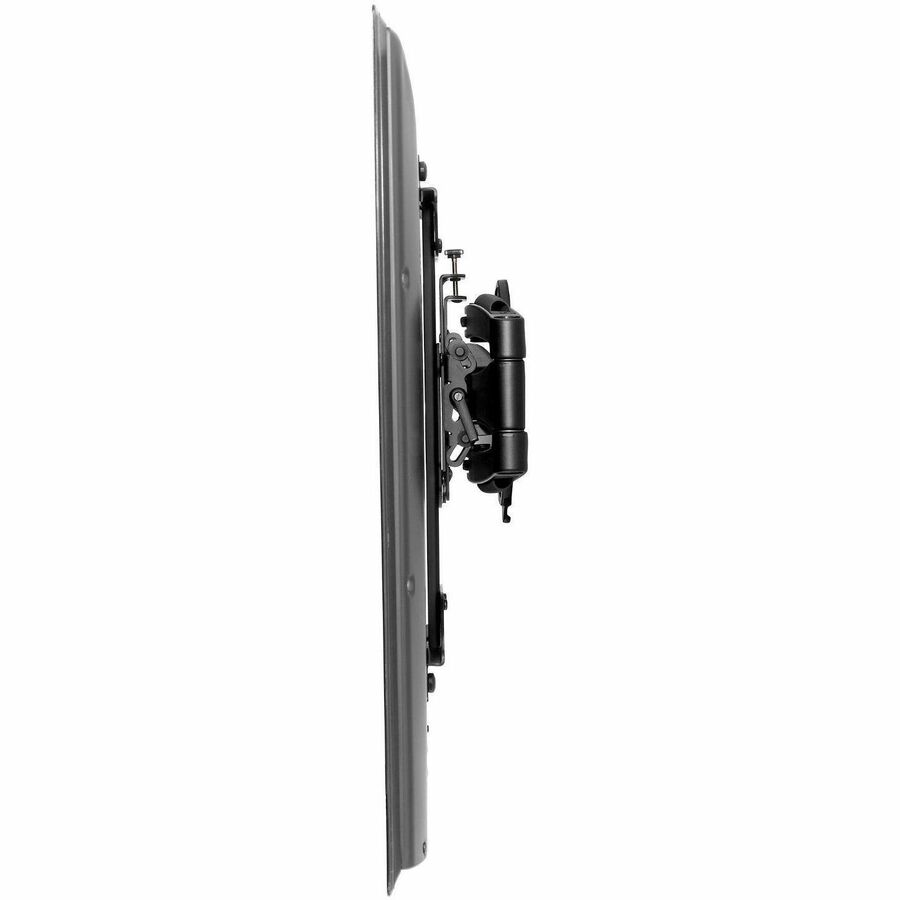

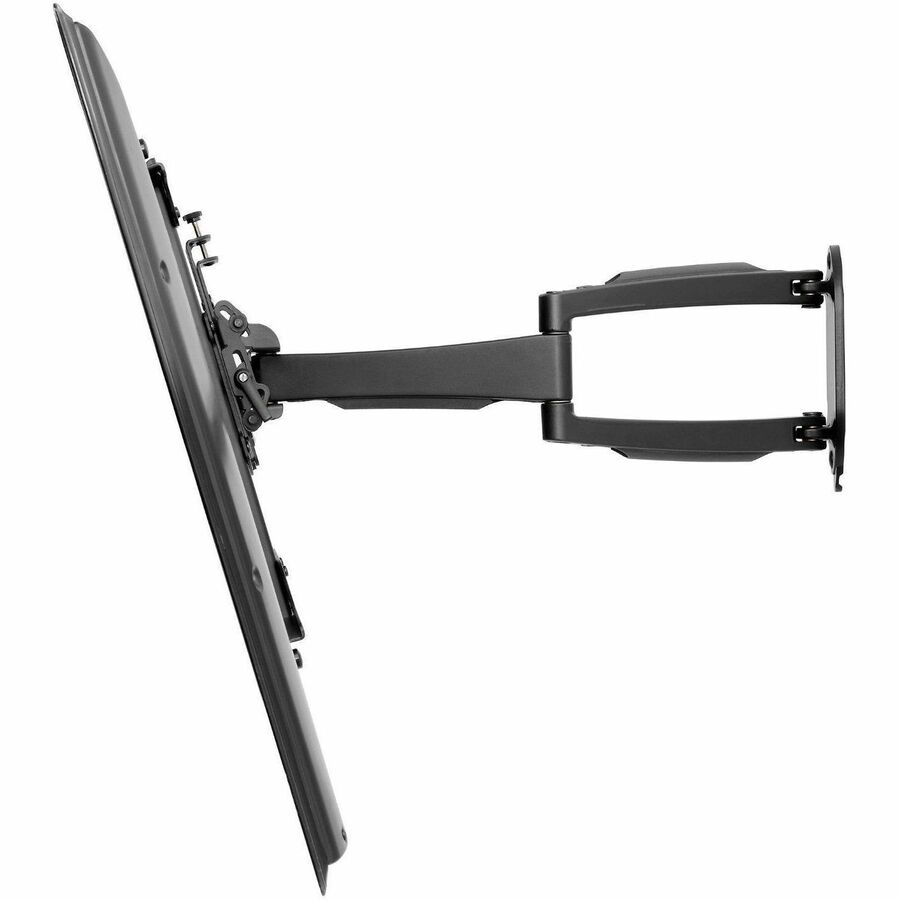

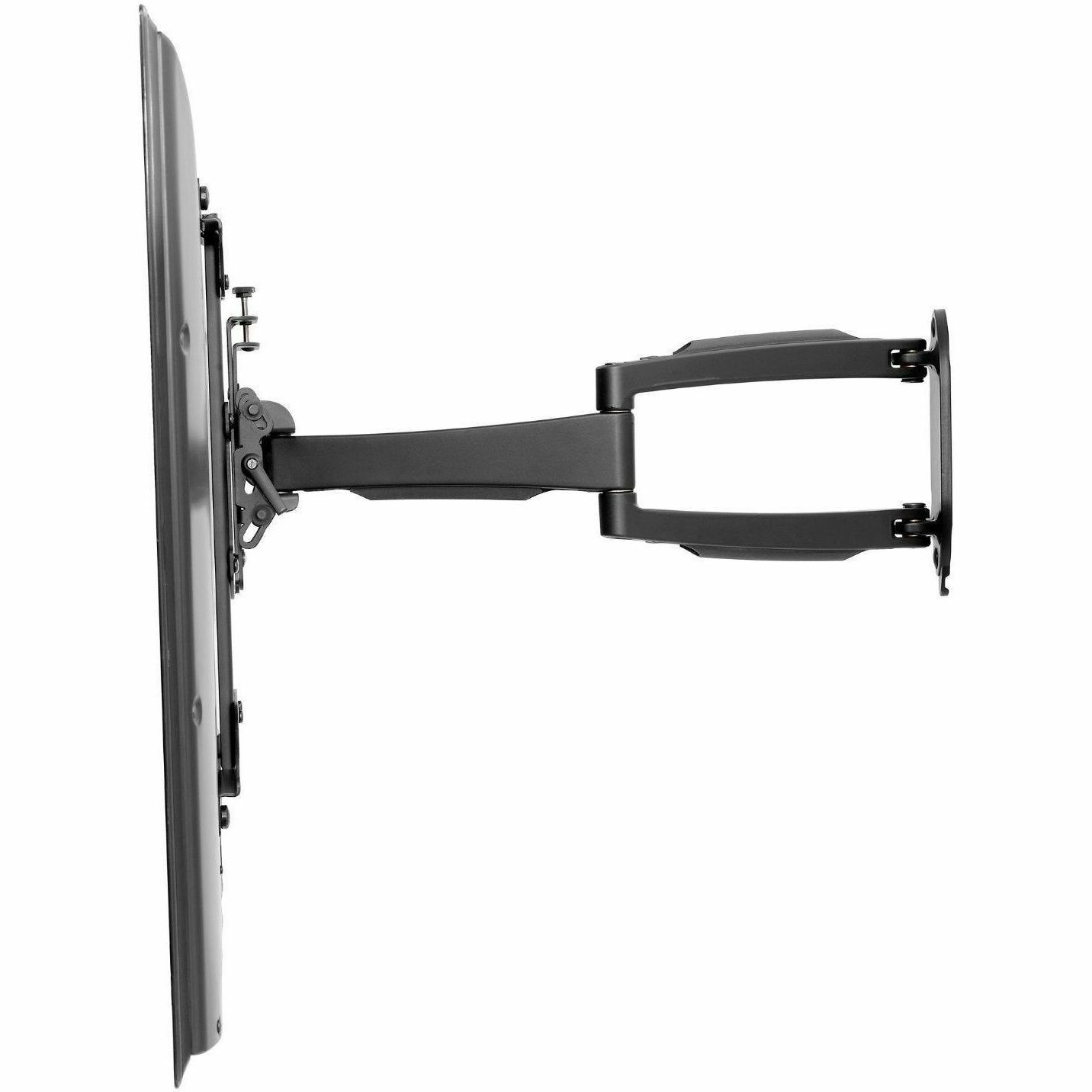

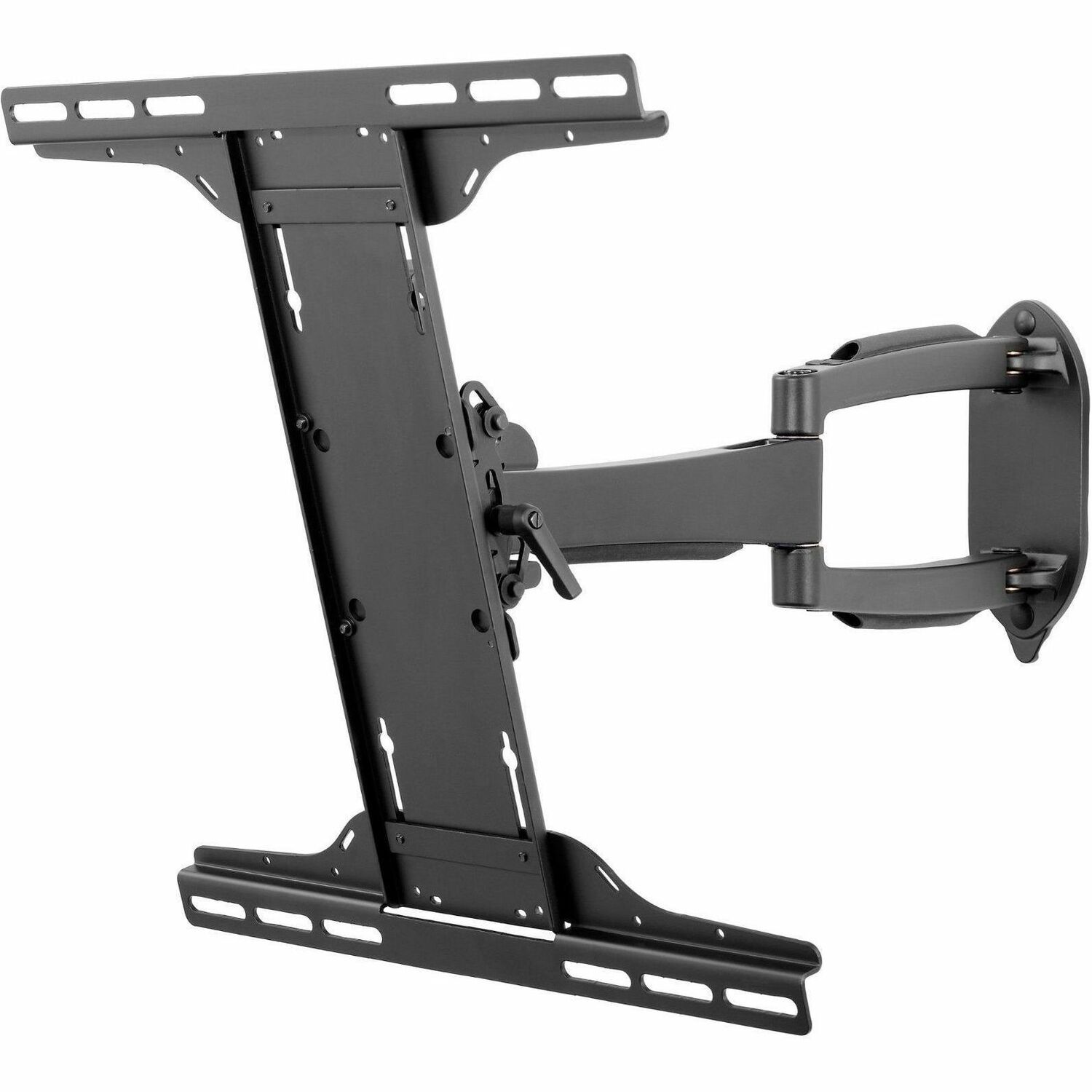

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22" (564mm) or fully-retract it to just 3.46" (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV® SmartMount® Articulating Wall Mount for 22˘ to 43˘ Displays
Peerless-AV® DesignerSeries™ Ultra Slim Articulating Wall Mount for 32˘ to 43˘ Ultra-thin Displays
Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount for 32˘ to 50˘ Ultra-thin Displays
Minimum Screen Size Supported
32"
22"
32"
32"
Maximum Screen Size Supported
50"
43"
43"
50"
Maximum Load Capacity
80 lb
80 lb
60 lb
60 lb
Mounting Pattern
400 x 400
400 x 400
Features
The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22" (564mm) or fully-retract it to just 3.46" (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SA746PU |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | SA746PU |
| Product Model | SA746PU |
| Product Name | Articulating Wall Arm for 32" to 50" Displays |
| Marketing Information | The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22" (564mm) or fully-retract it to just 3.46" (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Arm |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 80 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 50" |
| Minimum Adjustable Depth | 3.46" |
| Maximum Adjustable Depth | 22.22" |
| Features |
|
| Orientation | Landscape/Portrait |
| Height Adjustable | Yes |
| Minimum Tilt Angle | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 400 x 400 |
| Minimum Mounting Pattern | 200 x 100 |
| Form Factor | Wall Mountable |
| Height | 16.75" |
| Width | 18.11" |
| Depth | 22.22" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, OSHPD |
| Manufacturer Product Class | Articulating |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Maximum Tilt Angle | 15° |
|---|
| Minimum Swivel Angle | -90° |
|---|
| Maximum Swivel Angle | 90° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
| Weight (Approximate) |
|---|
| 10.70 lb |
