PLCM-UNL-CP
Manufacturer Brochure
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-UNL-CP |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | PLCM-UNL-CP |
| Product Model | PLCM-UNL-CP |
| Product Name | Universal Ceiling Mount for 32" to 90" Displays |

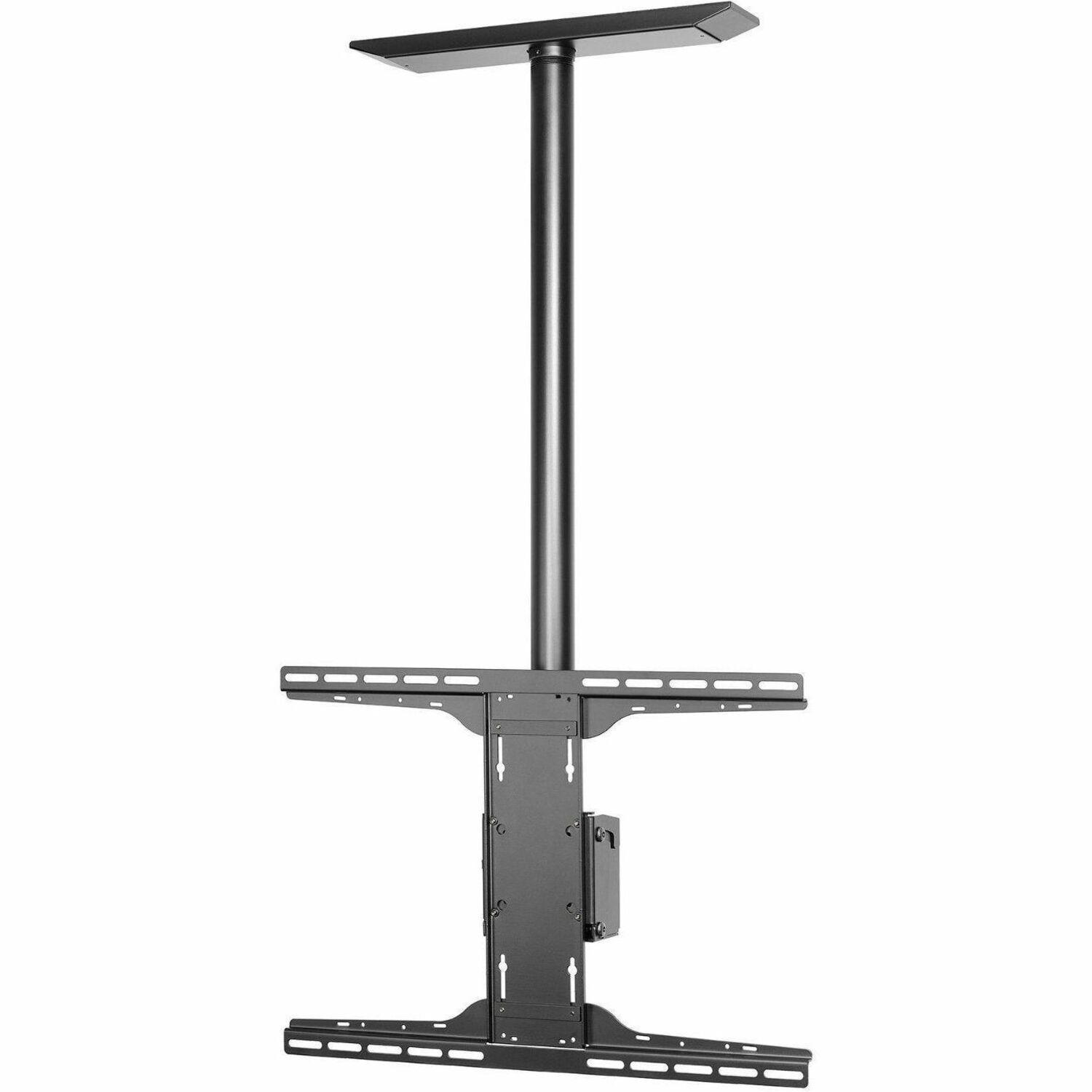

| Marketing Information | The SmartMount®PLCM-UNL-CP Universal Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-UNL-CP kit combines the PLP-UNL Universal I-Shaped Adaptor plate, the PLCM-2 tilt box, a 36" fixed length 1.5" NPT column, and the ceiling plate CMJ470to deliver a drop of 36" for display mounting patterns of up to 600 x 400mm. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 90" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Pattern | Universal |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | |
Aluminum - Extension Column
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Material Details | Aluminum - Extension Column |
| Form Factor | Ceiling Mountable |
| Height | 44.23" |
| Width | 24.38" |
| Depth | 4.03" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Room |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Ceiling Mount |
| Country of Origin | United States |
| TAA Compliant | Yes |
| UL Listed | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| 360° |
| Mount Function |
|
|---|
| Mount Surface | Ceiling |
|---|
| Weight (Approximate) |
|---|
| 25.60 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
