HA746-STB

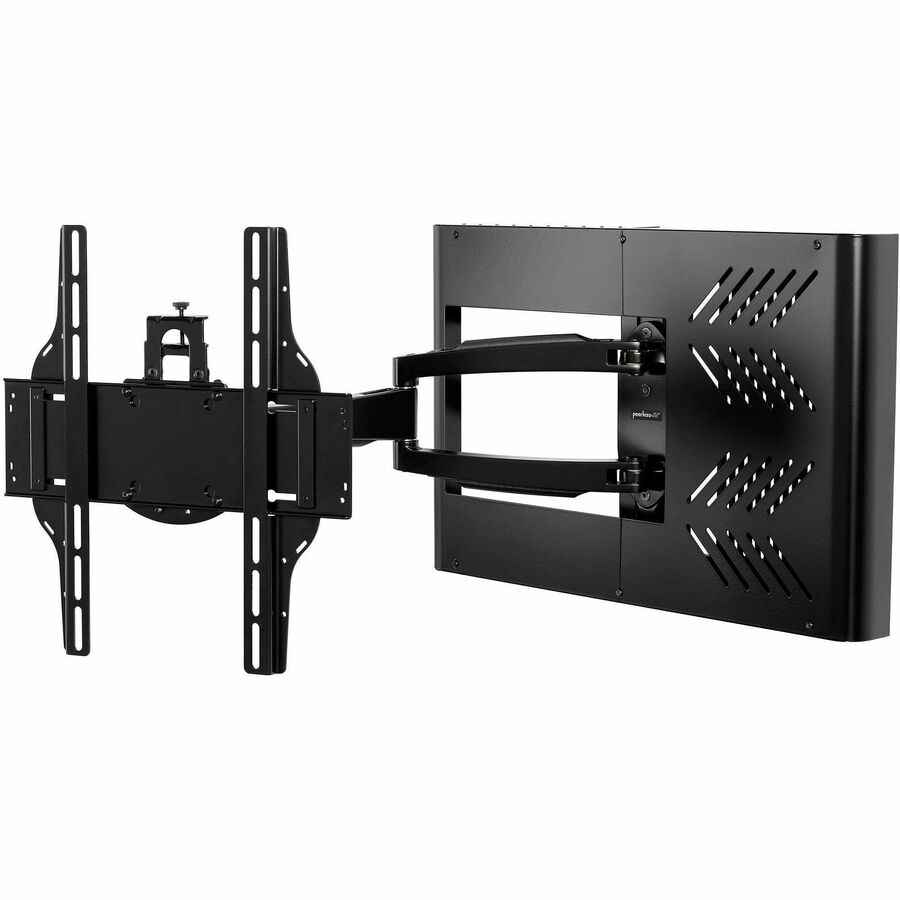

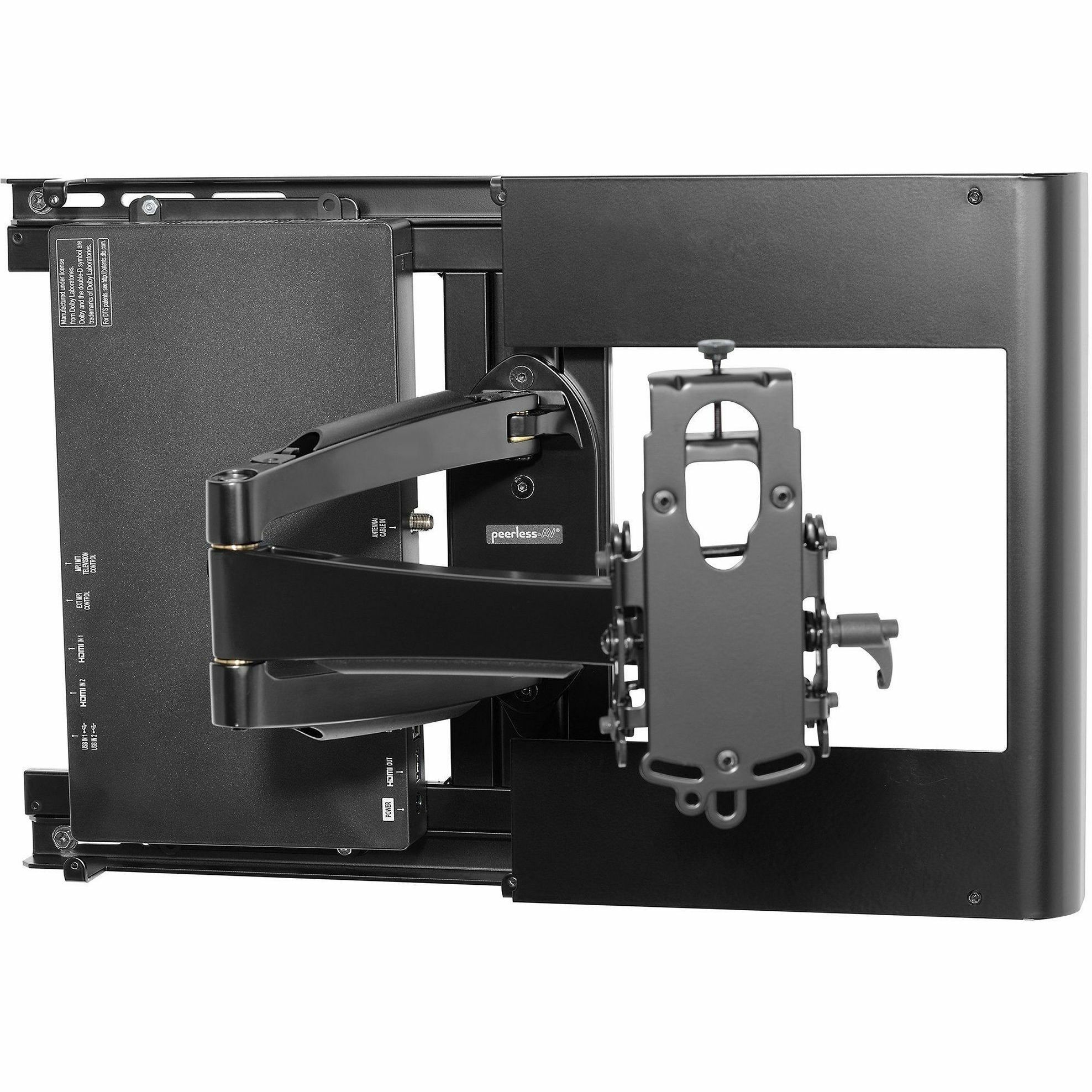

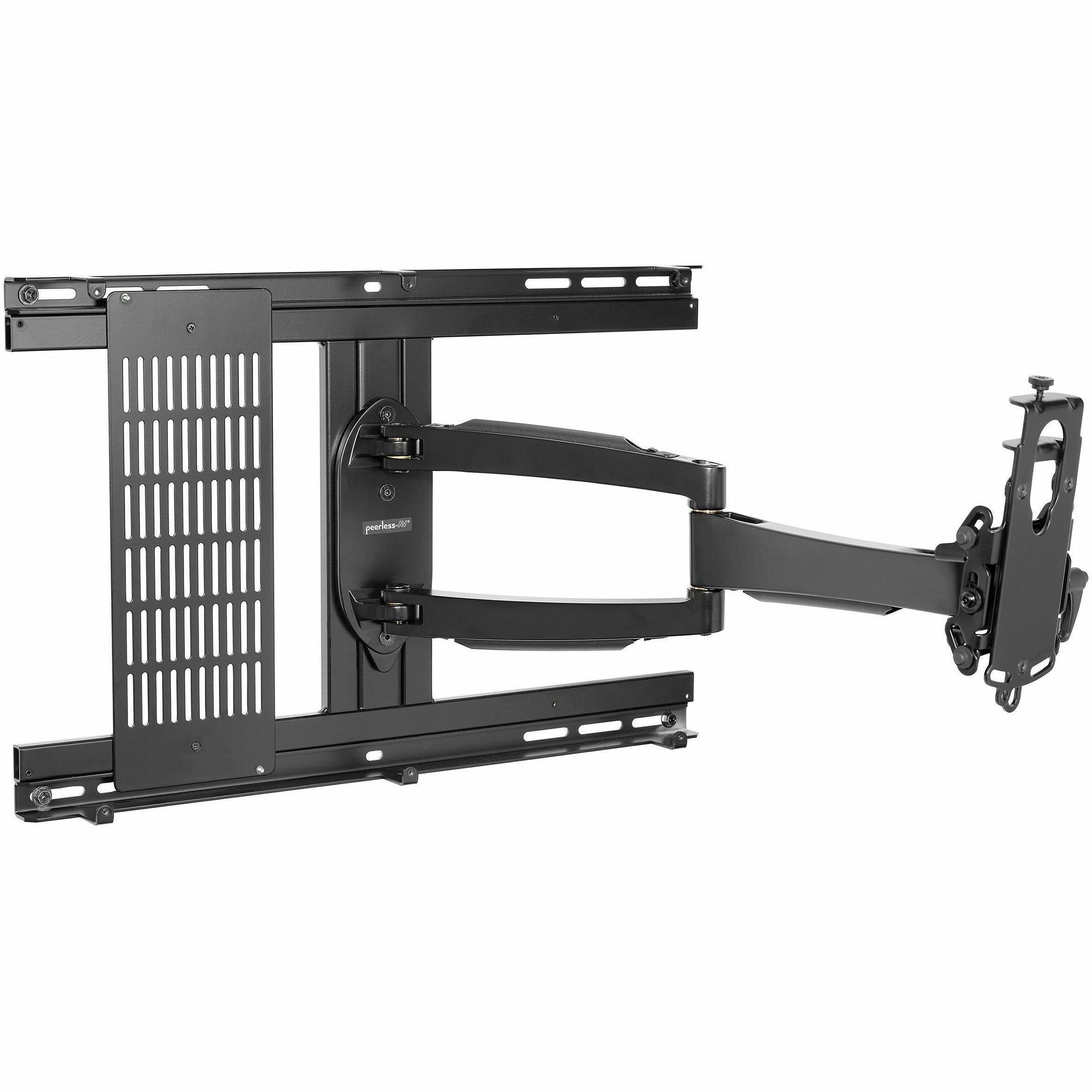

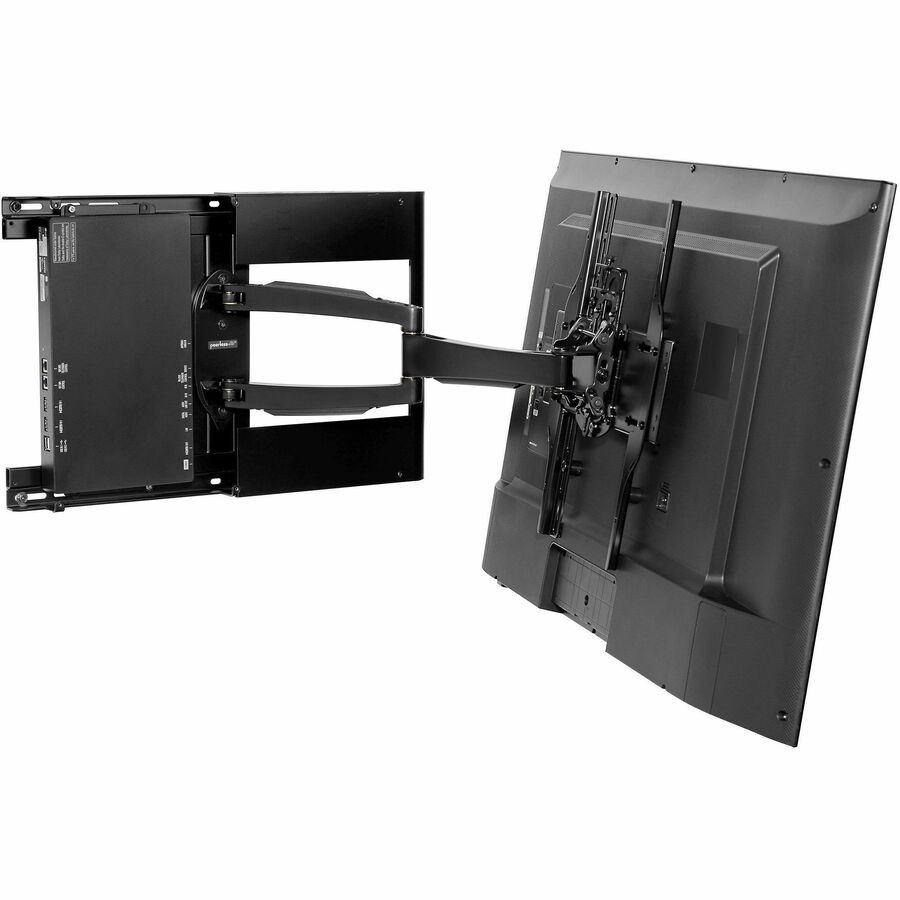

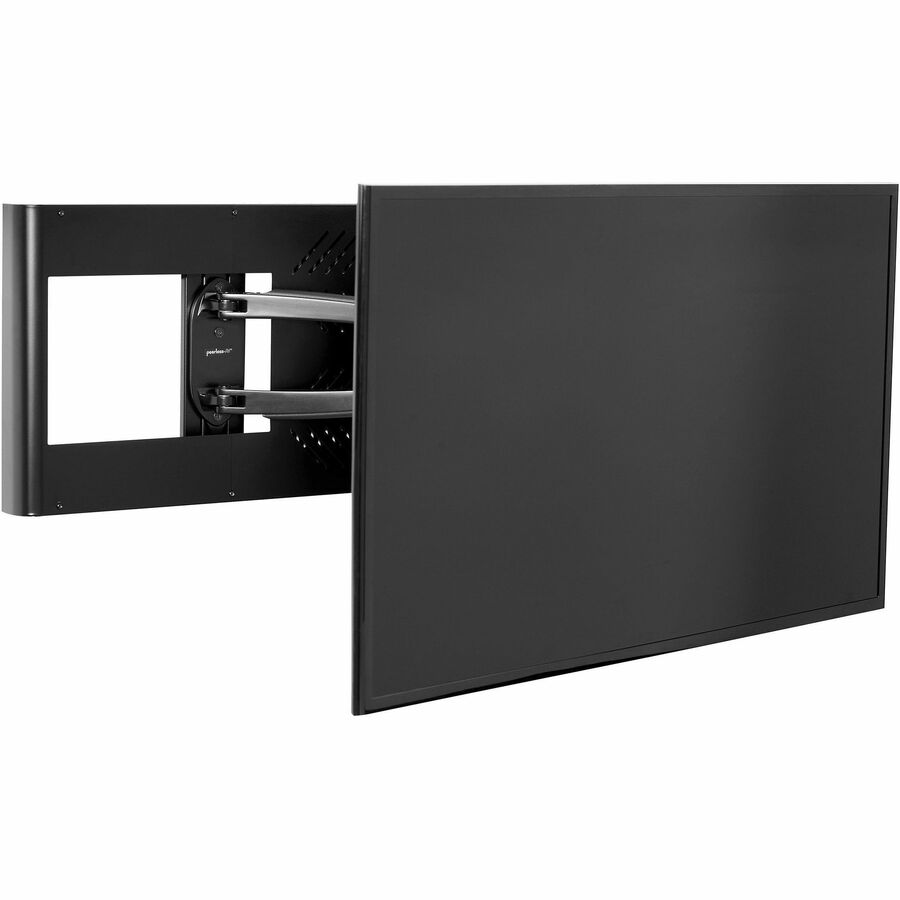

The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with the Hospitality market in mind, offering installation flexibility and an aesthetically pleasing solution for cable management and electronic storage. This articulating wall mount can be installed easily on single and dual metal studs, wood or concrete and comes complete with attachment hardware. The enclosure provides a secure, vented storage area for electronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws and the enclosure covers can easily be removed, allowing for quick access to the STB without disturbing the TV or mount itself. Additionally, the mount's open wall plate design allows for easy access to the wall or junction box.
32"
Maximum Screen Size Supported
65"
55"
Maximum Load Capacity
80 lb
60 lb
Mounting Pattern
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:


The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with the Hospitality market in mind, offering installation flexibility and an aesthetically pleasing solution for cable management and electronic storage. This articulating wall mount can be installed easily on single and dual metal studs, wood or concrete and comes complete with attachment hardware. The enclosure provides a secure, vented storage area for electronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws and the enclosure covers can easily be removed, allowing for quick access to the STB without disturbing the TV or mount itself. Additionally, the mount's open wall plate design allows for easy access to the wall or junction box.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | HA746-STB |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Series | HA746-STB |
| Product Model | HA746-STB |
| Product Name | Hospitality Wall Arm Mount with STB Enclosure |
| Marketing Information | The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with the Hospitality market in mind, offering installation flexibility and an aesthetically pleasing solution for cable management and electronic storage. This articulating wall mount can be installed easily on single and dual metal studs, wood or concrete and comes complete with attachment hardware. The enclosure provides a secure, vented storage area for electronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/public areas. For maintenance purposes, simply remove the tamper resistant screws and the enclosure covers can easily be removed, allowing for quick access to the STB without disturbing the TV or mount itself. Additionally, the mount's open wall plate design allows for easy access to the wall or junction box. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Arm |
Product Information | |
|---|---|
| Device Supported |
|
| Minimum Load Capacity | 65 lb |
| Maximum Load Capacity | 80 lb |
| Minimum Screen Size Supported | 43" |
| Maximum Screen Size Supported | 65" |
| Features |
|
| Mount Profile | Recessed |
| Height Adjustable | Yes |
| Maximum Tilt Angle | 5° |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Semi-gloss Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 16.75" |
| Width | 23" |
| Depth | 3.97" |
| Weight (Approximate) | 21 lb |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Hospitality |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Cable Management |
| Mount Surface | Wall |
|---|
| Durability |
|
|---|
| Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
|---|
