DST970X2

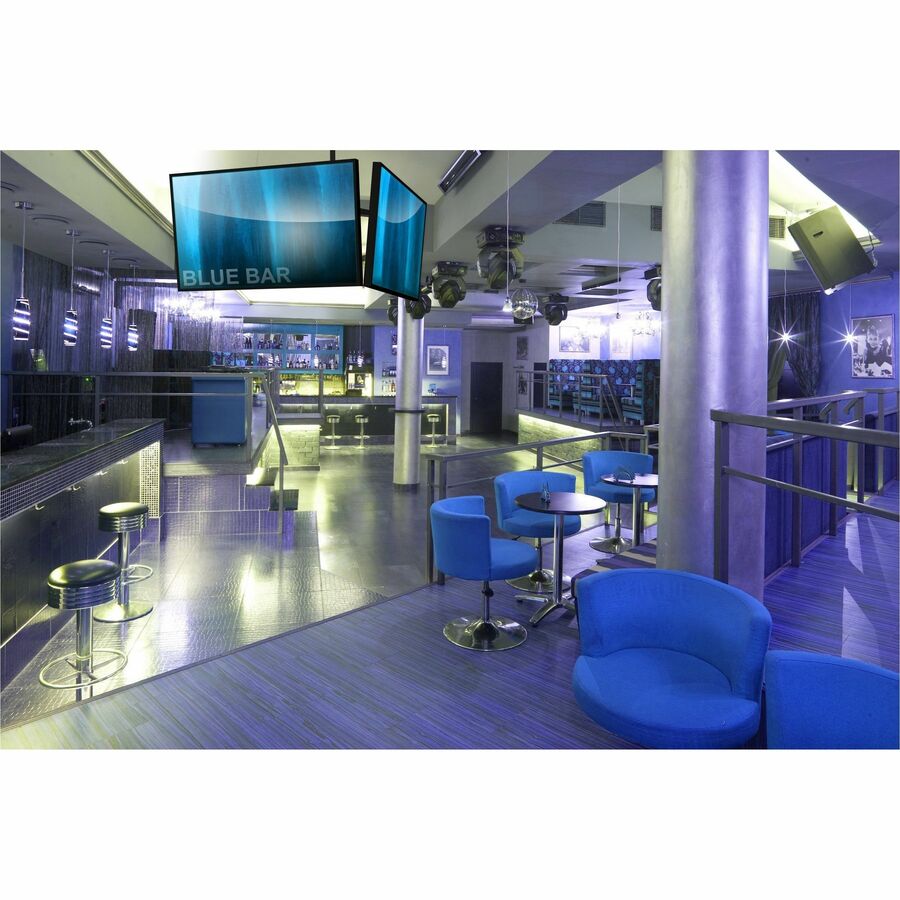

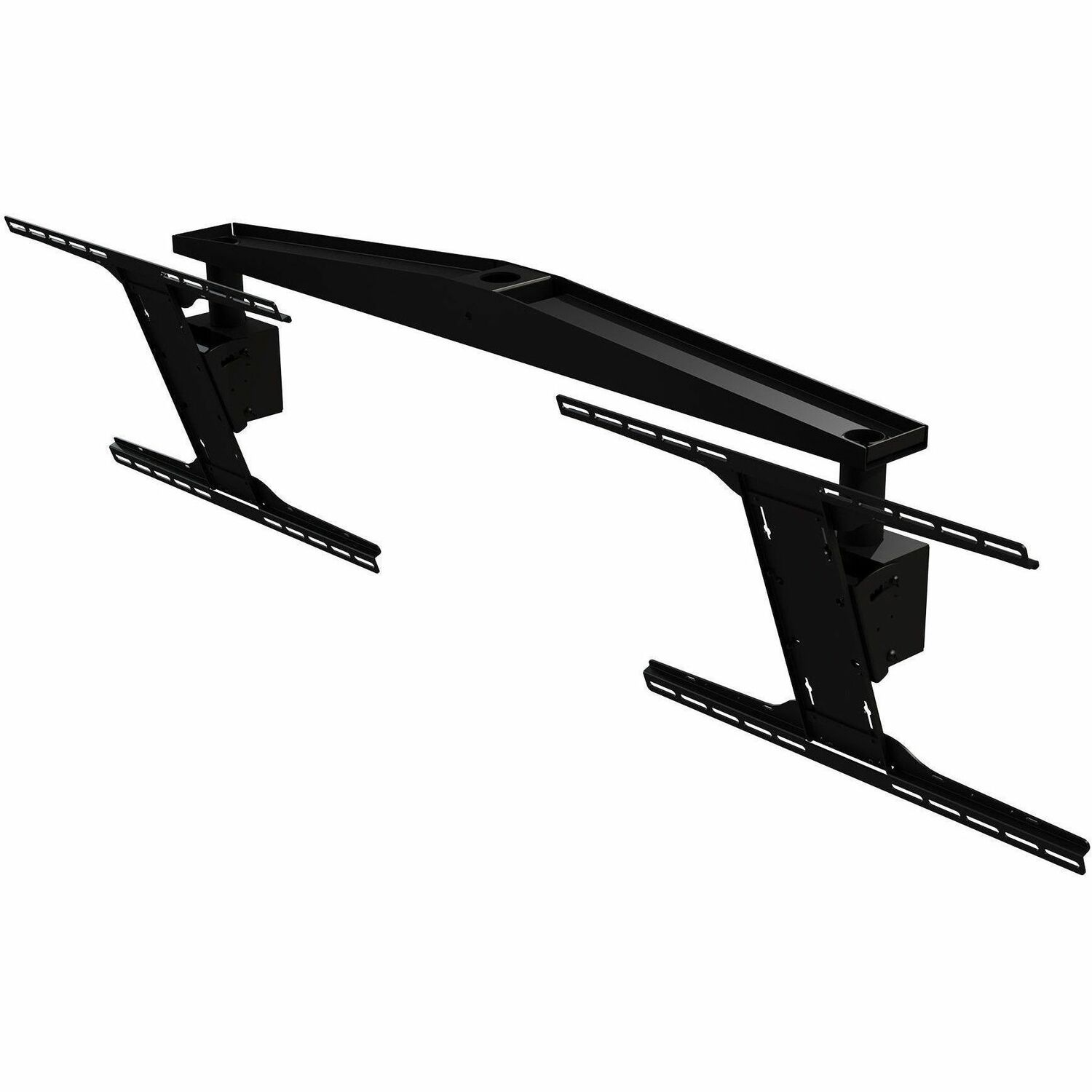

The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can be set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range.
Additional PDF 1
Minimum Screen Size Supported
40"
37"
37"
Maximum Screen Size Supported
70"
75"
80"
Maximum Load Capacity
250 lb
500 lb
495 lb
Mounting Pattern
600 x 400
730 x 405
730 x 405
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can be set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DST970X2 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Series | DST970X2 |
| Product Model | DST970X2 |
| Product Name | Dual Display Ceiling Mount for 40" to 70" Displays |
| Marketing Information | The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can be set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Digital Signage Display |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 125 lb |
| Maximum Load Capacity | 250 lb |
| Minimum Screen Size Supported | 40" |
| Maximum Screen Size Supported | 70" |
| Features |
|
| Mount Pattern Compatibility Type | Universal |
| Mount Function |
|
| Mount Surface | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Minimum Mounting Pattern | 100 x 100 |
| Product Material | Steel |
| Form Factor | Ceiling Mountable |
| Height | 16.75" |
| Width | 67.62" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Ceiling |
| Depth |
|---|
| 4.42" |
| Weight (Approximate) | 50 lb |
|---|
