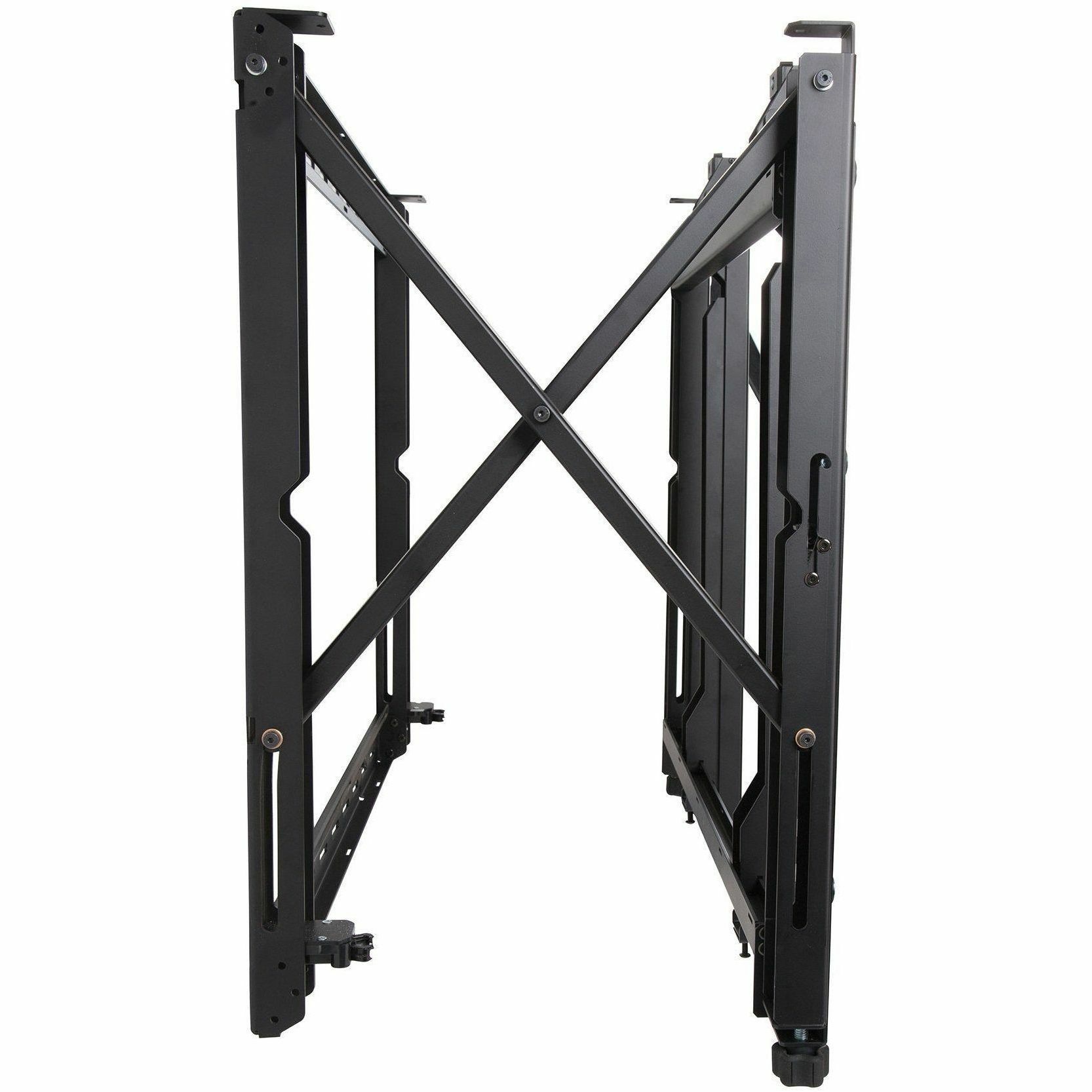

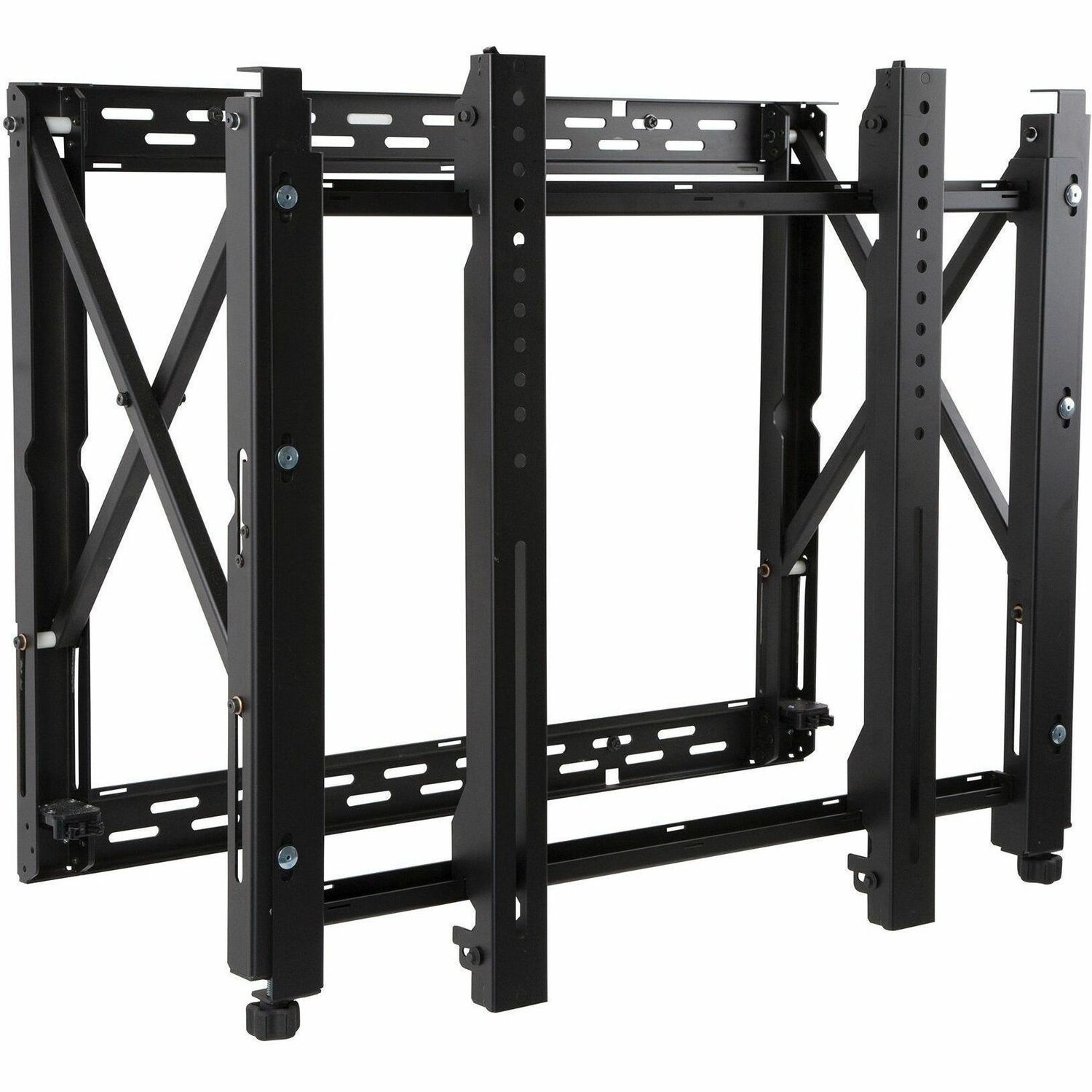

DS-VW795-QR
The DS-VW795-QR full service video wall mount with quick release offers an easy to install and service solution for both landscape and portrait large format displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution.
Product Datasheet
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The DS-VW795-QR full service video wall mount with quick release offers an easy to install and service solution for both landscape and portrait large format displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW795-QR |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW795-QR |
| Product Model | DS-VW795-QR |
| Product Name | Full Service Video Wall Mount with Quick Release for 65" to 98" Displays |
| Marketing Information | The DS-VW795-QR full service video wall mount with quick release offers an easy to install and service solution for both landscape and portrait large format displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 225 lb |
| Minimum Screen Size Supported | 65" |
| Maximum Screen Size Supported | 98" |
| Minimum Adjustable Depth | 3.60" |
| Maximum Adjustable Depth | 4.40" |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Profile | Recessed |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 600 |
| Minimum Mounting Pattern | 100 x 100 |
| Form Factor | Wall Mountable |
| Height | 27.58" |
| Width | 32.87" |
| Depth | 4.43" |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | TAA, VESA |
| Manufacturer Product Class | Wall, Quick Release Pop-out |
| Assembly Required | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Video Wall |
| Mount Surface | Wall |
|---|
| Weight (Approximate) |
|---|
| 40 lb |
