SEAMLESS Kitted Series Universal dvLED Mounting System for Latching Displays

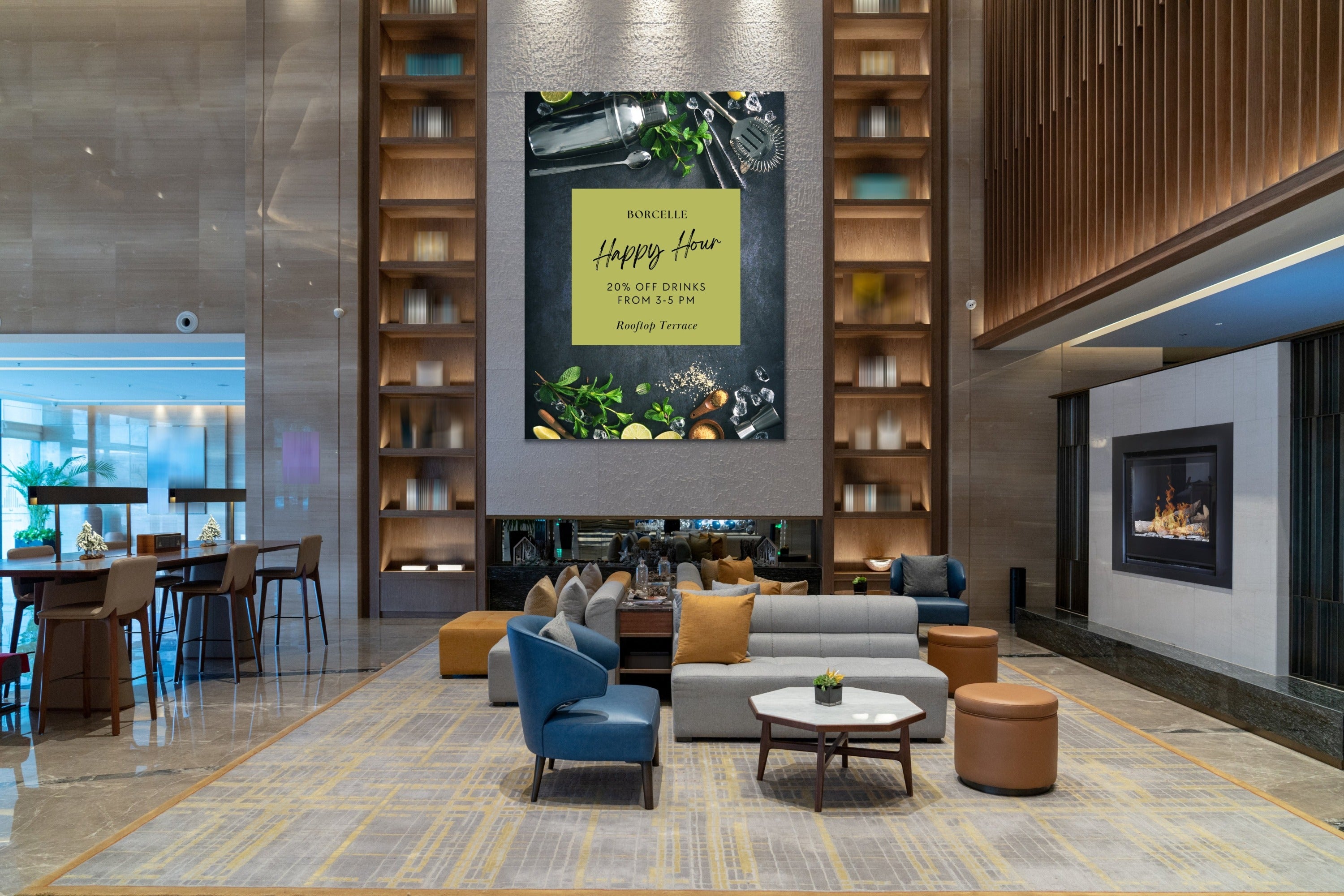

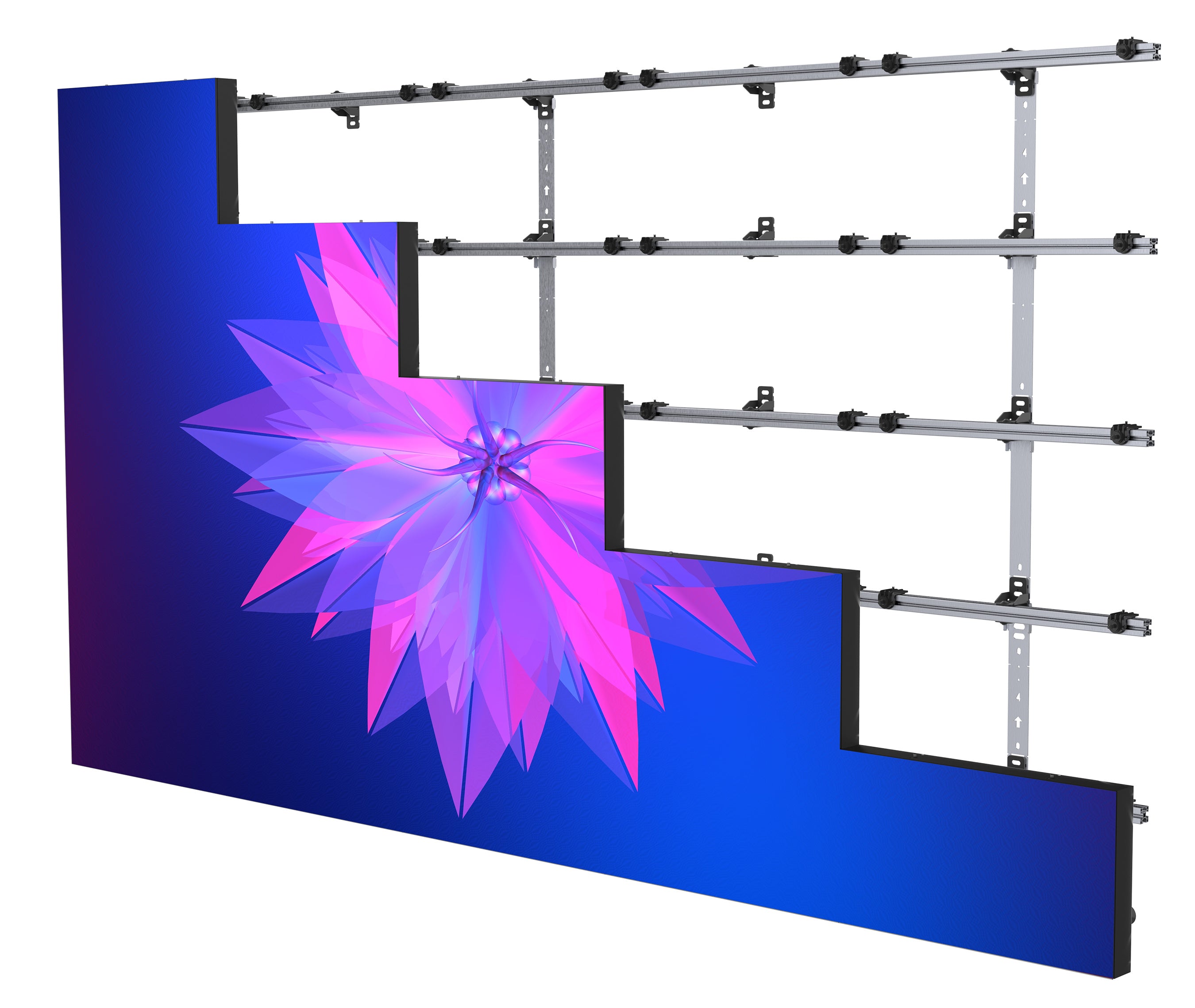

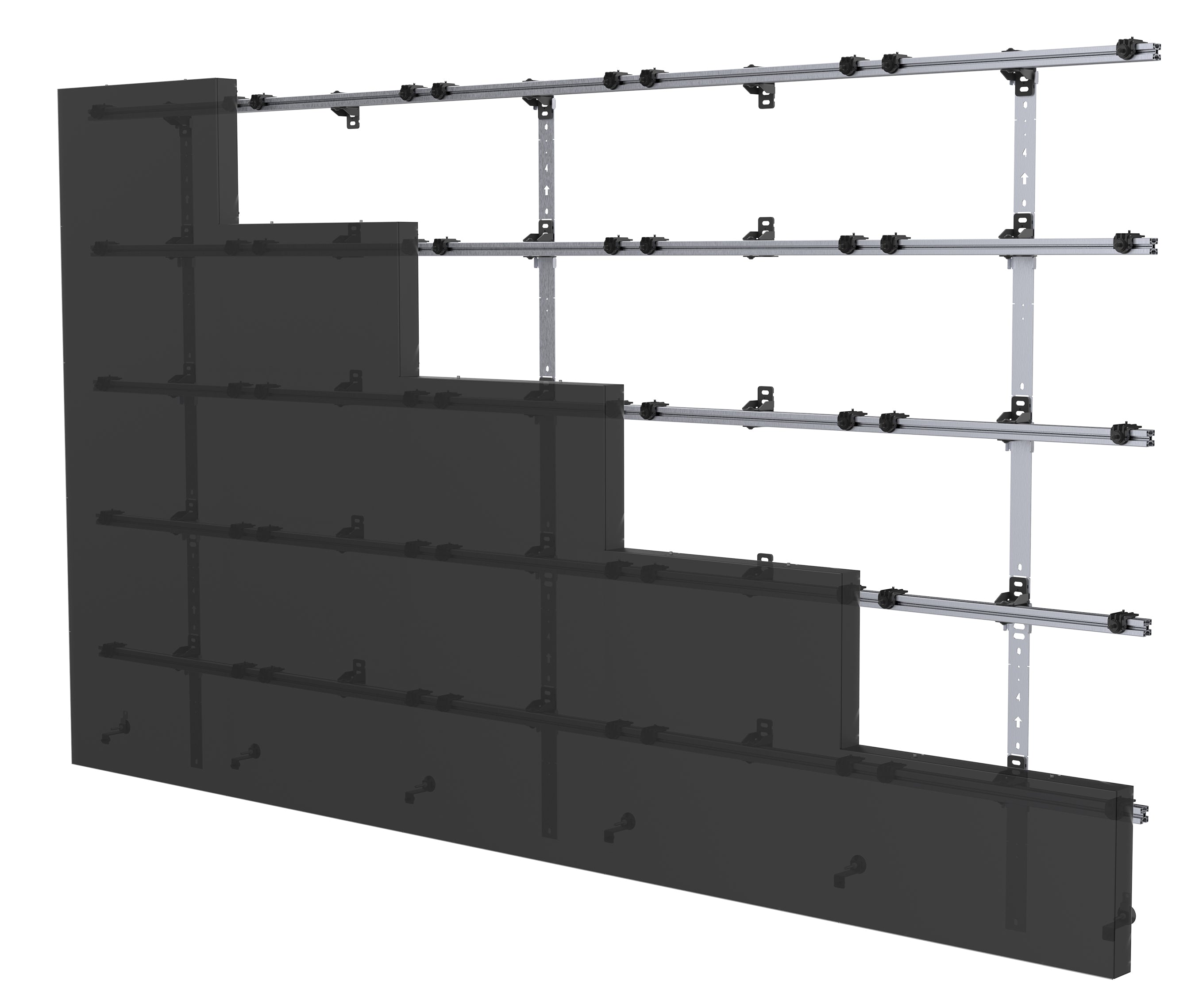

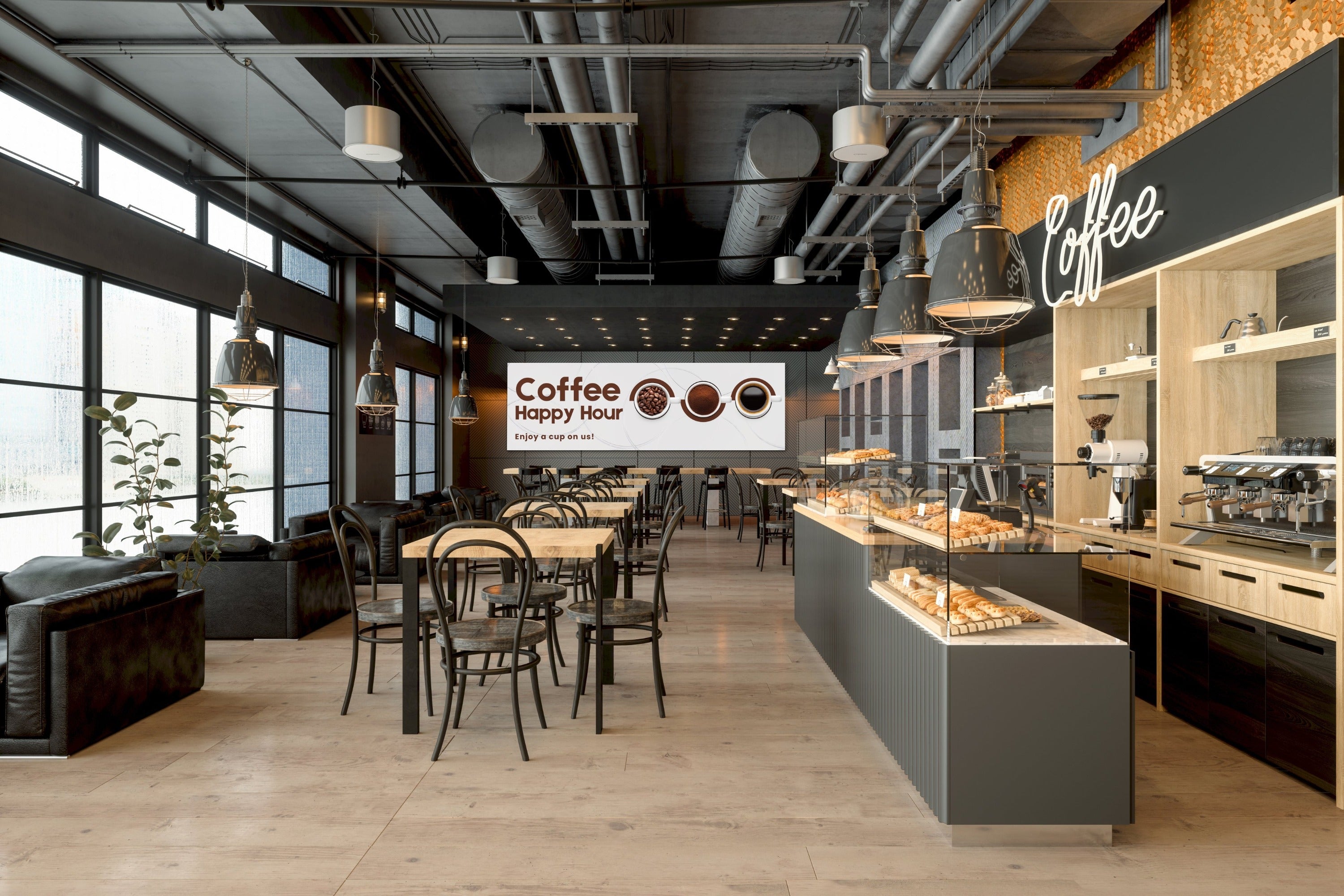

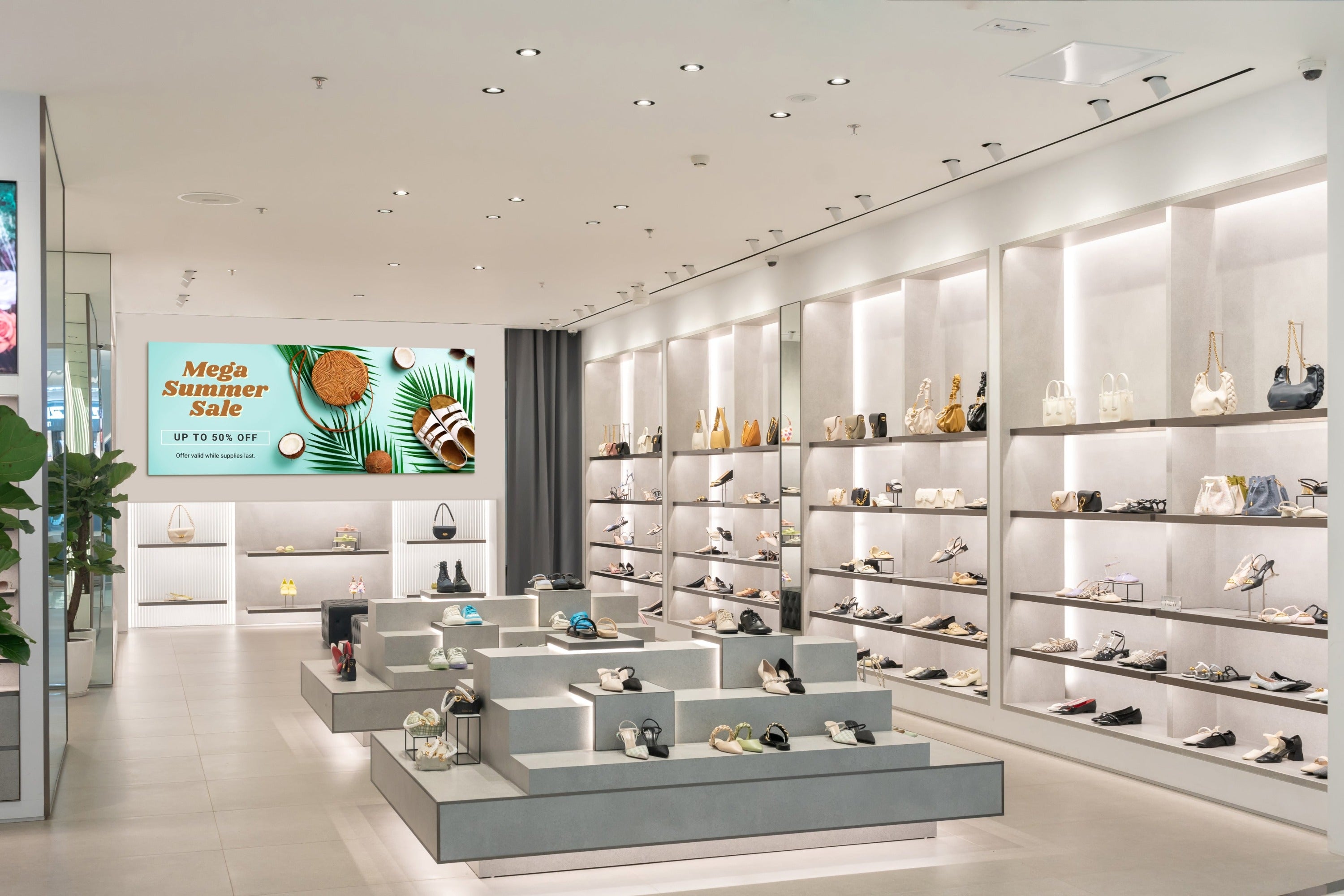

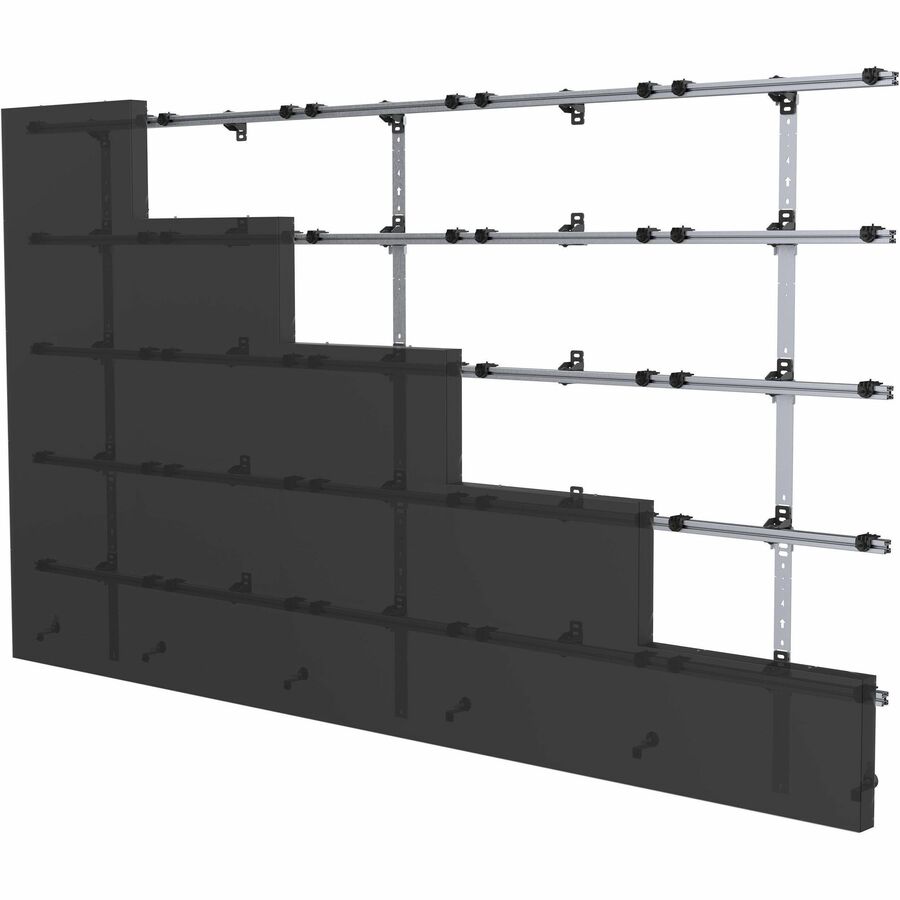

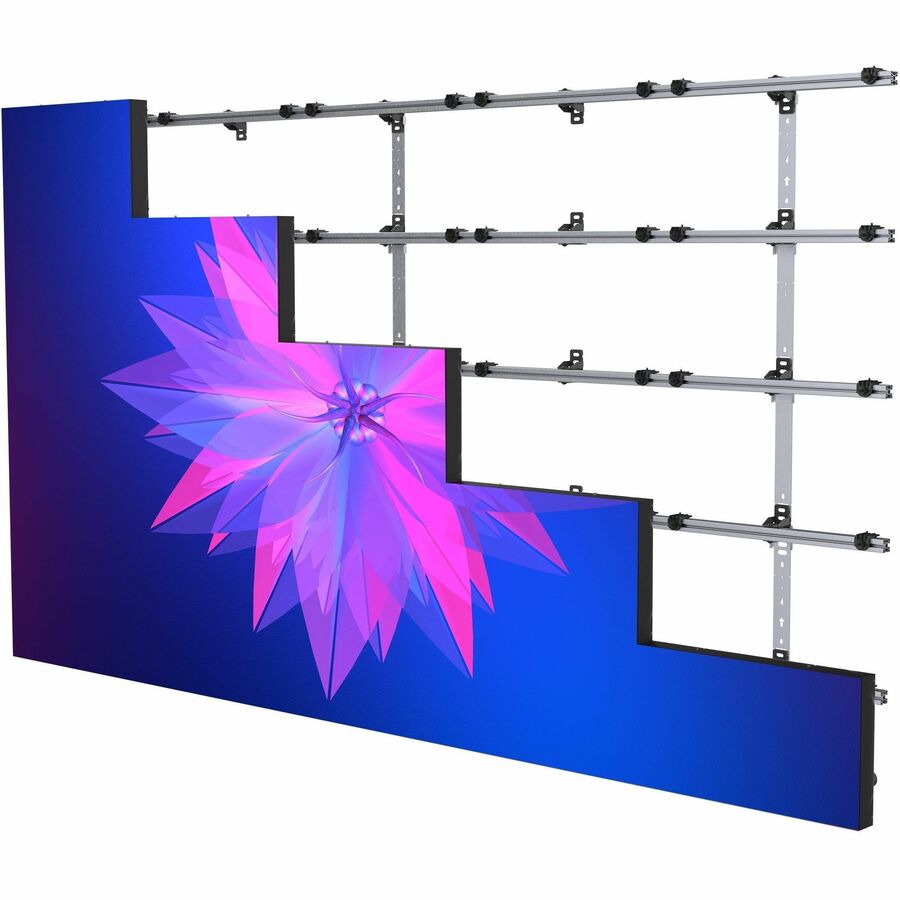

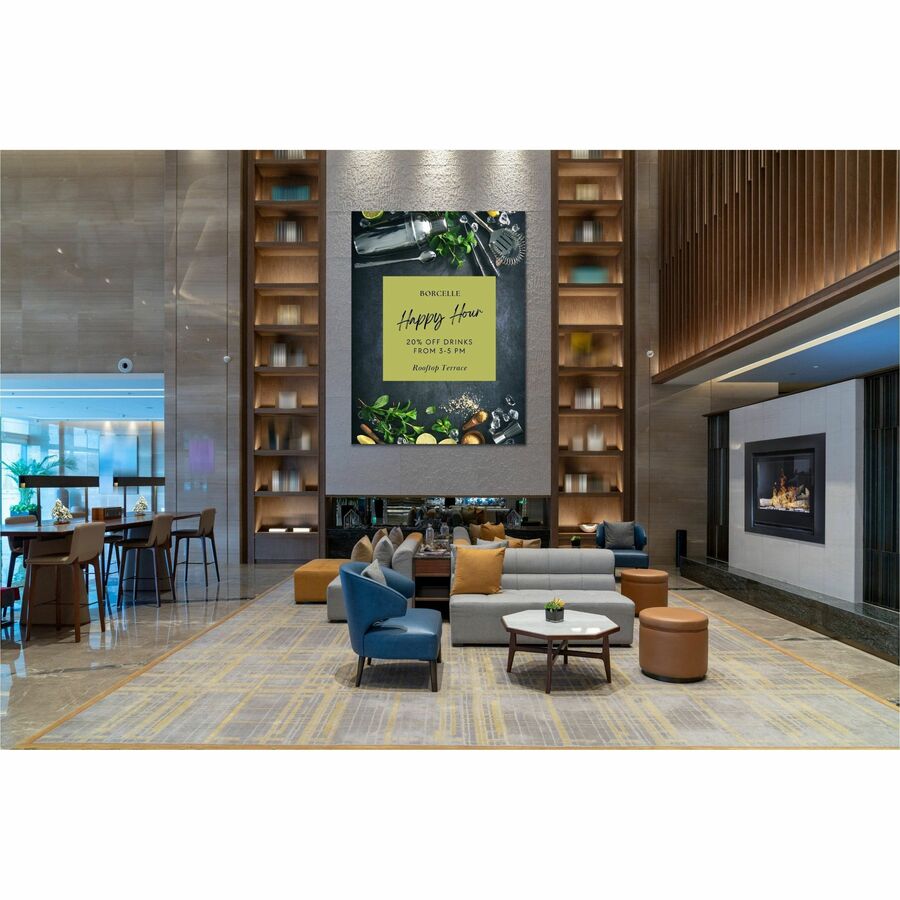

DS-LEDUNVThe Peerless-AV® SEAMLESS Kitted Series Universal dvLED Mounting System features a slim, space-saving and versatile design. The DS-LEDUNV is adaptable and supports latching dvLED displays.* This kitted solution is also designed and built to your display specifications and then scaled to your video wall configuration. The display adaptors and mount frame provide x, y and z axis adjustments to overcome uneven walls and to assure the video wall remains flat. The lightweight aluminum frame quickly attaches to the wall with assistance from the installer-friendly wall template, and the quick-connect clamps allow installers to easily attach the displays to the mount frame. Quickly and easily build the perfect dvLED video wall for a corporate lobby, retail display, sportsbook, concert hall, casino, and much more with Peerless-AV’s Universal dvLED Mounting System.
Peerless-AV also offers start to finish support through the SEAMLESS dvLED Video Wall Integration Program. The Peerless-AV dvLED Solutions Team is there every step of the way to ensure every customer receives SEAMLESS product support and service. To learn more, visit peerless-av.com/SEAMLESS.
*Please see the table below in the Showcase tab, or contact a Peerless-AV Sales Representative, for the current list of compatible latching dvLED display models.
Compatible Latching dvLED Displays
Brands & Series
Acclaim & NX Series
XT Series
WP & WT Series
LSAC, LSBB, LSCA & LSCB Series
M27 Series
27BDL6000 Series
E, FA, FC & FE Series
VST Series
BH/CH Series
UpanelS, Upanel II & UslimII Series
Featured Videos
FREQUENTLY ASKED QUESTIONS
What is the overall system depth?
The DS-LEDUNV has a depth range of 2.70" – 3.53" (69mm – 90mm). Please add this to the depth of the display. Check carefully to see if the attachment point on the display is recessed. Peerless-AV can supply a line drawing upon request.
Do I need to cut the extrusions to length?
Yes. Each order will arrive with a line drawing. Please reference the drawing for the cut to length dimensions.
How do I determine where the templates should go on the wall?
Each order will arrive with a line drawing that will provide the exact location of the wall template in relation to the top and side of the viewable image.
How do I determine the correct template length?
Each order will arrive with a line drawing that will provide the template length. Please make sure the template modified properly since a new template will be needed if the template is cut too short.
What is the easiest way to create a flat plane across the face of the mount?
The most simple method is to shoot a laser level that is parallel to the wall and a few inches proud of the aluminum extrusions. Set the extrusion at the nominal depth adjustment position and place an object on the face of the extrusion that will sit flat; a cylinder such as a cup works well. Mark the laser line on the object and then move the object to all of the depth adjustment points, adjusting the depth until the laser is on the marked line and the entire mount is on the same plane.
Does Peerless-AV provide installation services?
Yes, the SEAMLESS by Peerless-AV dvLED Video Wall Integration Program offers both consultation services, where our team of experts will oversee the mount installation, and full installation services where we will install the mount and display for you.
Click here to learn more!
- Universal design is compatible with a variety of latching dvLED displays
- Create a seamless video wall capable of overcoming any wall imperfections with X, Y, and Z axis adjustment

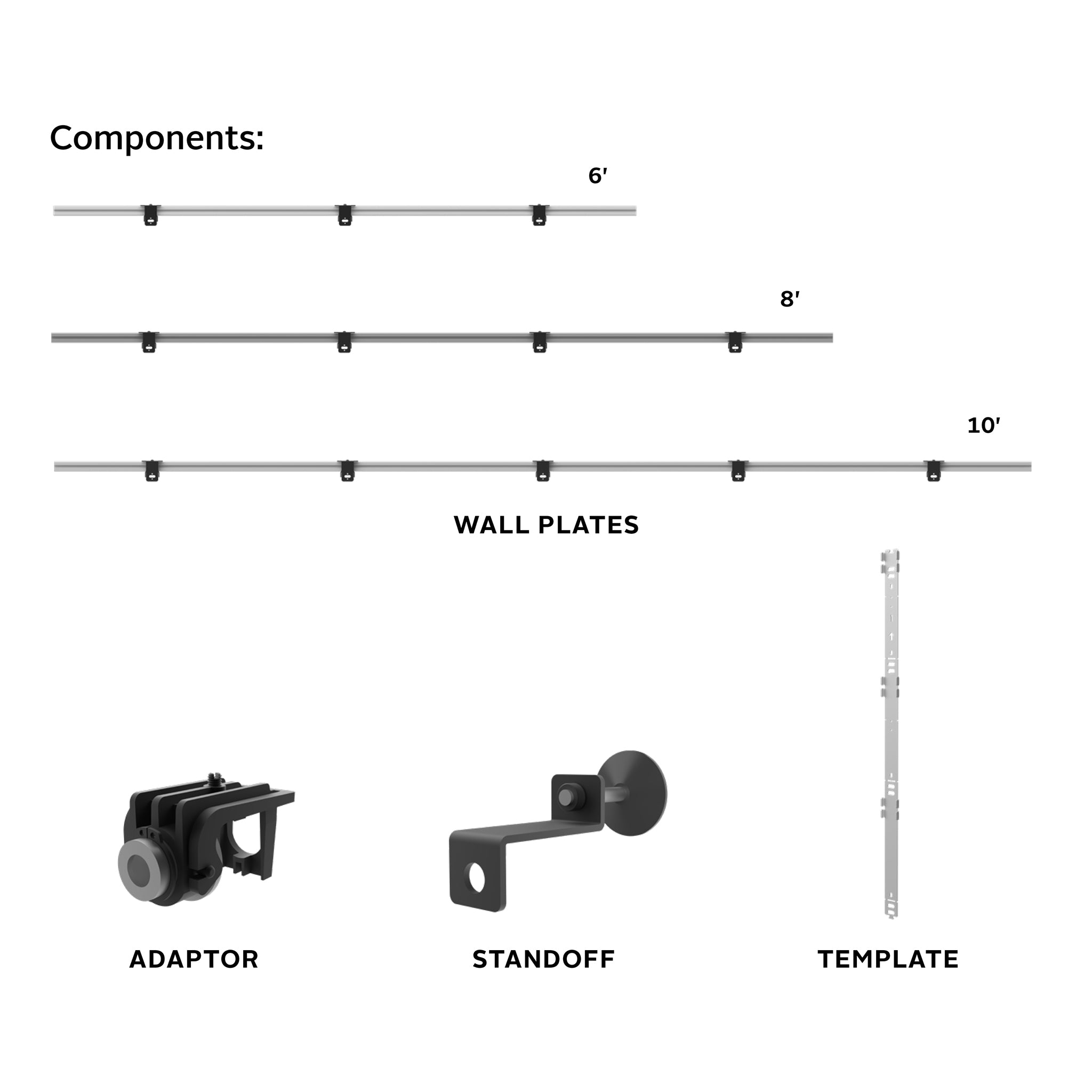

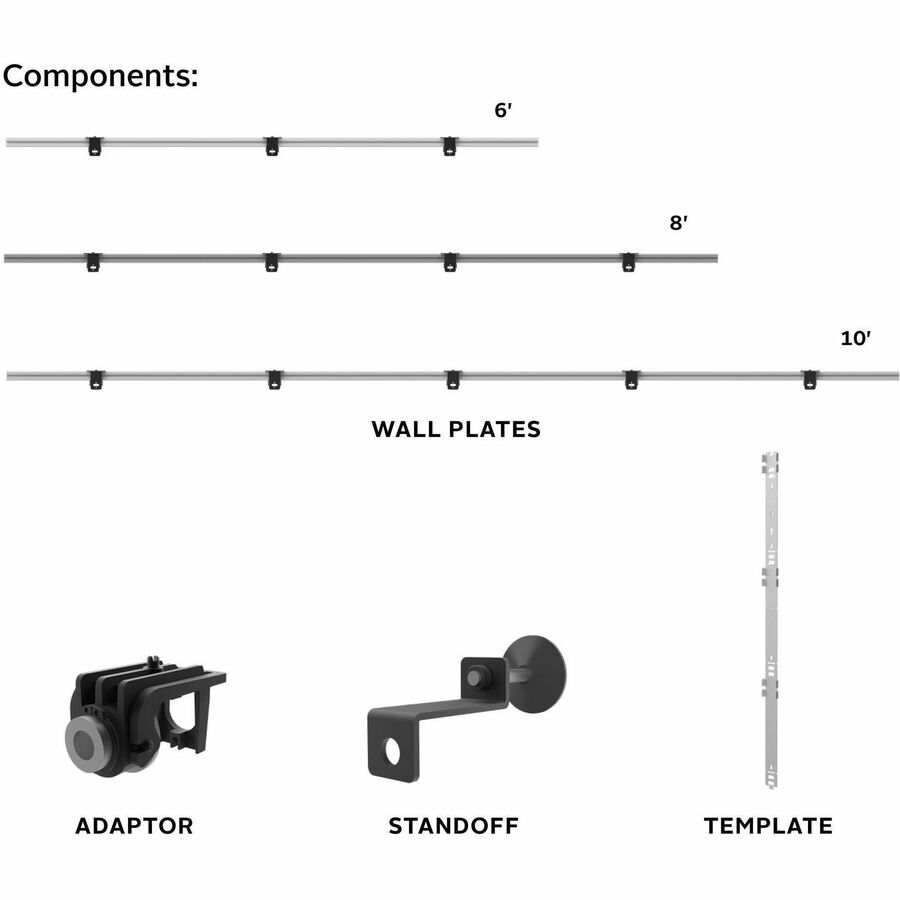

- Included wall template allows installers to quickly and accurately attach the frame to the wall
- Quick-connect clamps allow installers to quickly and easily attach the displays to the mount frame
- Open architecture provides ease of cable management
- Optional Trim Kit Accessory is compatible with most displays (DS-LEDTK Models)
